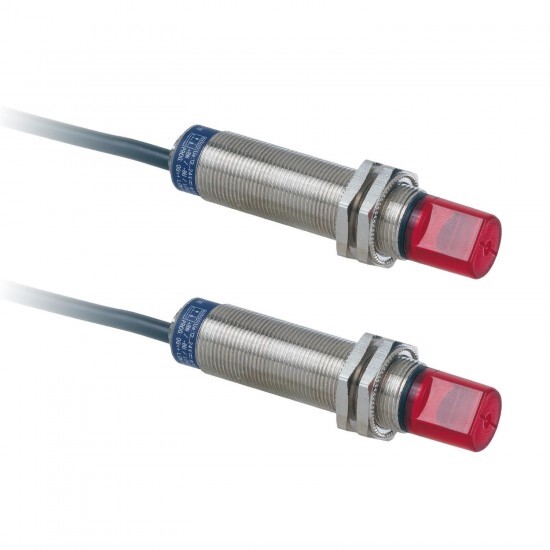

XU2N18PP341W Schneider
XU2N18PP341W Schneider
Opis
photo-electric sensor - XU2 - thru beam - 90° - Sn 15m - 12..24VDC - cable 2m
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XU |
| Material | stainless steel |
| sensor design | cylindrical M18 |
| series name | application food and beverage |
| electrical connection | cable |
| product specific application | - |
| discrete output type | PNP |
| discrete output function | 1 NO or 1 NC programmable |
| type of output signal | discrete |
| Dolžina kabla | 2 m |
| sensor name | XU2 |
| wiring technique | 3-wire |
| [Sn] nominal sensing distance | 15-15 m thru beam |
| emission | infrared thru beam |
| line of sight type | 90° lateral |
| sensing range | > 5...15 m |
| detection system | thru beam |
| supply circuit type | DC |
| electronic sensor type | photo-electric sensor |
| Komplementarno | |
| Teža izdelka | 0.27 kg |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Poraba toka | <= 50 mA no-load |
| Omejitve napajalne napetosti | 10-30 V DC |
| maximum voltage drop | <1.5 V (closed state) |
| length | 78 mm |
| cable outer diameter | 4.2 mm |
| enclosure material | stainless steel : 304 CU |
| maximum delay response | 1 ms |
| switching frequency | <= 500 Hz |
| maximum delay recovery | 1 ms |
| maximum delay first up | 15 ms |
| wire insulation material | PvR |
| cable composition | 4 x 0.34 mm² |
| diameter | 18 mm |
| status LED | 1 LED (green) for supply on 1 LED (yellow) for output state |
| lens material | PMMA |
| setting-up | without sensitivity adjustment |
| maximum sensing distance | 20 m |
| switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| output type | solid state |
| add on output | without |
| kit composition | transmitter + receiver |
| add on input | breaking test + programming |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-55 °C |
| IP stopnja zaščite | IP67 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| Certifikati izdelkov | UL CE CSA |
| Odporno proti udarcu | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 25 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
