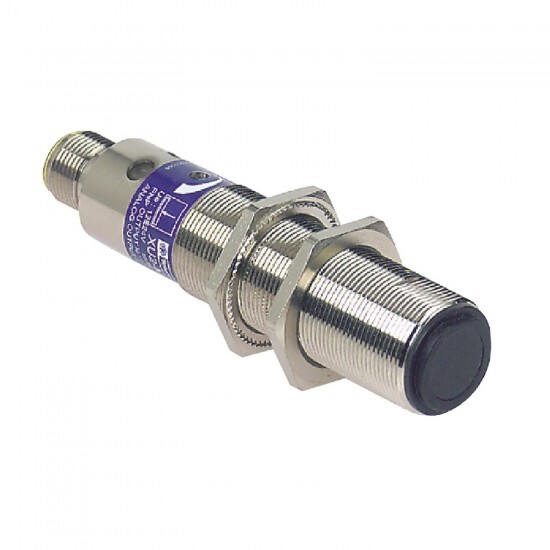

XU2M18MC230T Schneider
XU2M18MC230T Schneider
Opis
photo-electric sensor - XU2 - emitter - 24..240VAC/DC
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XU |
| Material | metal |
| sensor design | cylindrical M18 |
| series name | general purpose single mode |
| electrical connection | cable, 3 pins |
| discrete output function | 1 NO + 1 NC |
| type of output signal | discrete |
| Dolžina kabla | 2 m |
| sensor name | XU2 |
| wiring technique | 2-wire |
| [Sn] nominal sensing distance | 15-15 m thru beam need a transmitter |
| emission | infrared thru beam |
| line of sight type | along case axis |
| sensing range | > 5...15 m |
| detection system | thru beam |
| supply circuit type | AC/DC |
| electronic sensor type | photo-electric sensor transmitter |
| Komplementarno | |
| [Us] rated supply voltage | 24...240 V AC/DC |
| Omejitve napajalne napetosti | 20-264 V AC/DC |
| maximum voltage drop | <6 V (closed state) |
| length | 82 mm |
| enclosure material | nickel plated brass |
| maximum delay response | 20 ms |
| maximum residual current | 1.5 mA open state |
| switching frequency | <= 25 Hz |
| maximum delay recovery | 20 ms |
| maximum delay first up | 300 ms |
| wire insulation material | PvR |
| diameter | 18 mm |
| status LED | instability: 1 LED (red) output state: 1 LED (yellow) |
| lens material | PMMA |
| maximum sensing distance | 20 m |
| switching capacity in mA | 10...200 mA (to be used with 0.4 A quick-blow fuse in series with the load) |
| output type | solid state |
| add on output | without |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-55 °C |
| IP stopnja zaščite | IP67 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| Certifikati izdelkov | CSA CE UL |
| Odporno proti udarcu | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
