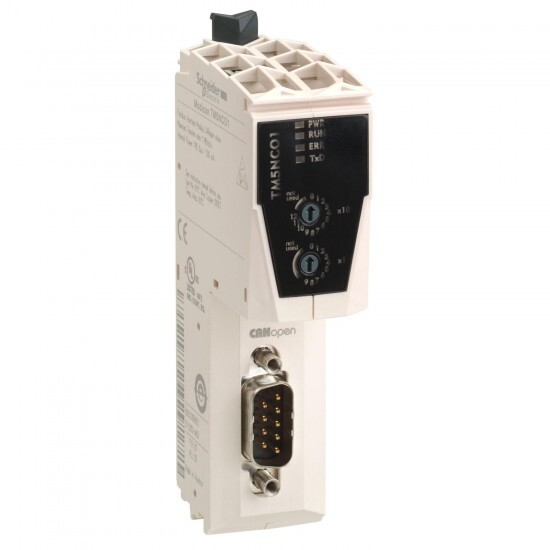

TM5NCO1 Schneider Electric
TM5NCO1 Schneider Electric
Opis
CANopen FieldBus Interface Module
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Modicon TM5 |
| Izdelek ali sestavni del | CANopen communication module |
| Komplementarno | |
| Teža izdelka | 0.05 kg |
| local signalling | 1 LED green/red for power supply (PWR) 1 LED green/red for CAN status (RUN) 1 LED red for CAN status (ERROR) 1 LED yellow for controller communication status on TM5 bus (TxD) |
| colour | white |
| Poraba toka | 300 mA |
| product compatibility | motion controller logic controller |
| electrical connection | removable spring terminal block |
| Označevanje | CE |
| range compatibility | Modicon LMC058 Modicon LMC078 Modicon M258 |
| device composition | interface module bus base ordered separately power supply ordered separately terminal block ordered separately |
| integrated connection type | 1 isolated serial link, male SUB-D 9 CANopen, 10, 20, 50, 125, 250, 500, 800, 1000 Kbit/s and autodetected |
| maximum power dissipation in W | 1.5 W |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -10-55 °C without (horizontal installation) -10-60 °C with derating factor (horizontal installation) -10-50 °C (vertical installation) |
| IP stopnja zaščite | IP20 conforming to IEC 61131-2 |
| Stopnja onesnaženosti | 2 conforming to IEC 60664 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| relative humidity | 5-95 % without condensation |
| Nadmorska višina delovanja | 0...2000 m |
| Certifikati izdelkov | cULus C-Tick CSA GOST-R |
| Odpornost na elektromagnetna polja | 1 V/m 2...2.7 GHz conforming to EN/IEC 61000-4-3 10 V/m 80 MHz...2 GHz conforming to EN/IEC 61000-4-3 |
| Standardi | CSA C22.2 No 213 IEC 61131-2 UL 508 CSA C22.2 No 142 |
| Odporno proti udarcu | 15 gn for 11 ms |
| Odpornost proti vibracijam | 1 gn at 8.4-150 Hz on DIN rail 3.5 mm at 5-8.4 Hz on DIN rail |
| Odpornost na elektrostatično razelektritev | 4 kV on contact conforming to EN/IEC 61000-4-2 8 kV in air conforming to EN/IEC 61000-4-2 |
| Odpornost proti hitrim prehodnim pojavom | 1 kV (I/O) conforming to EN/IEC 61000-4-4 1 kV (shielded cable) conforming to EN/IEC 61000-4-4 2 kV (power lines) conforming to EN/IEC 61000-4-4 |
| Elektromagnetna kompatibilnost | EN/IEC 61000-4-6 |
| disturbance radiated/conducted | CISPR 11 |
| storage altitude | 0-3000 m |
| surge withstand | 0.5 kV differential mode conforming to EN/IEC 61000-4-5 1 kV common mode conforming to EN/IEC 61000-4-5 |
