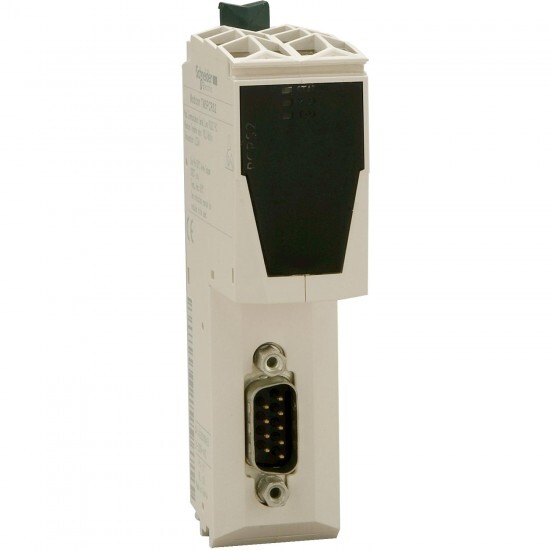

TM5PCDPS Schneider Electric
TM5PCDPS Schneider Electric
Opis
profibus DP slave link - PCI communication module
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Modicon TM5 |
| Izdelek ali sestavni del | Profibus DP communication module |
| physical interface | RS485 |
| Komplementarno | |
| Teža izdelka | 0.05 kg |
| product compatibility | motion controller logic controller |
| Označevanje | CE |
| range compatibility | Modicon M258 Modicon LMC058 |
| method of access | slave V1 |
| integrated connection type | 1 isolated serial link, female SUB-D 9 Profibus DP (RS485), <= 12 Mbit/s |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 0-55 °C without (horizontal installation) 0-60 °C with derating factor (horizontal installation) 0-50 °C (vertical installation) |
| IP stopnja zaščite | IP20 conforming to IEC 61131-2 |
| Stopnja onesnaženosti | 2 conforming to IEC 60664 |
| Temperatura okoliškega zraka za skladiščenje | -25-70 °C |
| relative humidity | 5-95 % without condensation |
| Nadmorska višina delovanja | 0...2000 m |
| Certifikati izdelkov | CSA cULus GOST-R C-Tick |
| Odpornost na elektromagnetna polja | 1 V/m 2...2.7 GHz conforming to EN/IEC 61000-4-3 10 V/m 80 MHz...2 GHz conforming to EN/IEC 61000-4-3 |
| Standardi | CSA C22.2 No 213 UL 508 CSA C22.2 No 142 IEC 61131-2 |
| Odporno proti udarcu | 15 gn for 11 ms |
| Odpornost proti vibracijam | 1 gn at 8.4-150 Hz on DIN rail 3.5 mm at 5-8.4 Hz on DIN rail |
| Odpornost na elektrostatično razelektritev | 4 kV on contact conforming to EN/IEC 61000-4-2 8 kV in air conforming to EN/IEC 61000-4-2 |
| Odpornost proti hitrim prehodnim pojavom | 1 kV (I/O) conforming to EN/IEC 61000-4-4 1 kV (shielded cable) conforming to EN/IEC 61000-4-4 2 kV (power lines) conforming to EN/IEC 61000-4-4 |
| Elektromagnetna kompatibilnost | EN/IEC 61000-4-6 |
| disturbance radiated/conducted | CISPR 11 |
| storage altitude | 0-3000 m |
| surge withstand | 0.5 kV differential mode conforming to EN/IEC 61000-4-5 1 kV common mode conforming to EN/IEC 61000-4-5 |
