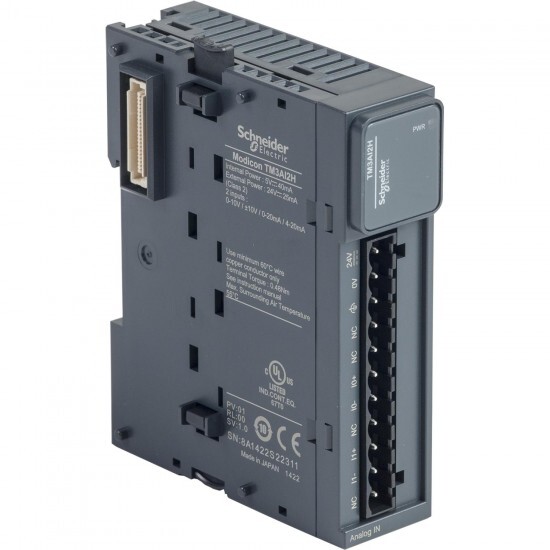

TM3AI2H Schneider Electric
TM3AI2H Schneider Electric
Opis
module TM3 - 2 analog inputs high resolution
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Modicon TM3 |
| Izdelek ali sestavni del | analog input module |
| Združljivost serije/obsega | Modicon M221 Modicon M241 Modicon M251 |
| analogue input type | current 4...20 mA current 0...20 mA voltage 0...10 V voltage - 10...10 V |
| analogue input number | 2 |
| Komplementarno | |
| Višina | 90 mm |
| mounting support | top hat type TH35-15 rail conforming to IEC 60715 top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit |
| Teža izdelka | 0.115 kg |
| local signalling | 1 LED (green)PWR: |
| Širina | 23.6 mm |
| Globina | 70 mm |
| [Us] rated supply voltage | 24 V DC |
| Poraba toka | 30 mA at 5 V DC via bus connector no load 40 mA at 5 V DC via bus connector full load 25 mA at 24 V DC via external supply |
| Prenapetostna vzdržljivost | 1 kV power supply common mode conforming to EN/IEC 61000-4-5 0.5 kV power supply differential mode conforming to EN/IEC 61000-4-5 1 kV input common mode conforming to EN/IEC 61000-4-5 |
| Omejitve napajalne napetosti | 20.4-28.8 V |
| electrical connection | 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for inputs and supply |
| Označevanje | CE |
| type of cable | twisted shielded pairs cable <30 m for input circuit |
| repeat accuracy | +/-0.5 %FS |
| insulation | between input and supply at 1500 V AC between input and internal logic at 500 V AC |
| sampling duration | 1 ms |
| temperature drift | +/- 0.006 %FS/°C |
| input impedance | <= 50 Ohm current >= 1 MOhm voltage |
| LSB value | 2.44 mV 0...10 Vvoltage 4.88 mV - 10...10 Vvoltage 4.88 µA 0...20 mAcurrent 3.91 µA 4...20 mAcurrent |
| conversion time | 1 ms + 1 ms per channel + 1 controller cycle time |
| analogue input resolution | 16 bits 15 bits + sign |
| absolute accuracy error | +/- 0.1 % of full scale at 25 °C +/- 1 % of full scale |
| non-linearity | +/- 0.01 %FS |
| permissible continuous overload | 13 V, analogue input type: voltage 40 mA, analogue input type: current |
| cross talk | <= 1 LSB |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -10-55 °C horizontal installation -10-35 °C vertical installation |
| IP stopnja zaščite | IP20 |
| Stopnja onesnaženosti | 2 |
| Temperatura okoliškega zraka za skladiščenje | -25-70 °C |
| relative humidity | 10-95 %, without condensation (in operation) 10-95 %, without condensation (in storage) |
| Nadmorska višina delovanja | 0...2000 m |
| Odpornost na elektromagnetna polja | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 |
| Standardi | EN/IEC 61131-2 EN/IEC 61010-2-201 |
| Odporno proti udarcu | 15 gn for 11 ms |
| Odpornost proti vibracijam | 3.5 mm at 5-8.4 Hz on DIN rail 3 gn at 8.4-150 Hz on DIN rail |
| Odpornost na elektrostatično razelektritev | 8 kV in air conforming to EN/IEC 61000-4-2 4 kV on contact conforming to EN/IEC 61000-4-2 |
| Odpornost proti hitrim prehodnim pojavom | 1 kV (I/O) conforming to EN/IEC 61000-4-4 |
| Elektromagnetne emisije | radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011 radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to EN/IEC 55011 |
| immunity to microbreaks | 10 ms |
| resistance to conducted disturbances | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| storage altitude | 0-3000 m |
| resistance to magnetic fields | 30 A/m conforming to EN/IEC 61000-4-8 |
