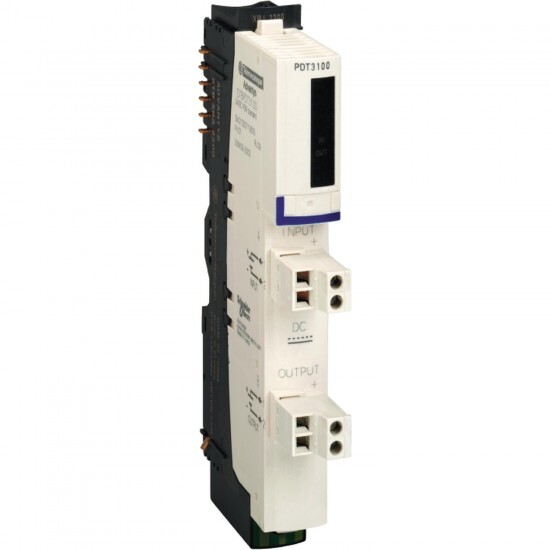

STBPDT3100K Schneider Electric
STBPDT3100K Schneider Electric
Opis
standard power distribution kit STB - 24 V DC
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Modicon STB distributed I/O solution |
| Izdelek ali sestavni del | standard power distribution kit |
| Komplementarno | |
| Višina | 125 mm |
| Teža izdelka | 0.13 kg |
| Širina | 18.4 mm |
| Globina | 65.1 mm |
| [Us] rated supply voltage | 24 V |
| product compatibility | mounting base STBXBA2200 |
| protection type | built-in overcurrent protection, 10 A time-lag fuse for output circuit built-in overcurrent protection, 5 A time-lag fuse for input circuit reverse polarity for actuator bus |
| Označevanje | CE |
| status LED | 1 LED (green)actuator bus power supply (OUT): 1 LED (green)sensor bus power supply (IN): |
| overvoltage category | II |
| kit composition | STBXTS2130, spring type connectors STBPDT2100 module STBXBA2200 base STBXTS1130, screw type connectors |
| permissible current | 30 A for 2 minutes grounding terminal |
| hot swapping fallback | hot swapping illegal |
| supply circuit type | DC |
| voltage detection threshold | < 15 V +/-1 DC IN/OUT LED lit >= 15 V +/-1 DC IN/OUT LED non lit |
| voltage range | 19.2...30 V DC sensor/actuator bus |
| power supply output current | 10-10 A at 45 °C (input/output circuit) 12-12 A at 30 °C (input/output circuit) 6-6 A at 70 °C (input/output circuit) 8-8 A at 60 °C (input/output circuit) 0-4 A at 30 °C (input circuit) 0-8 A at 30 °C (output circuit) |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 0-60 °C (without) -25-70 °C (with derating factor) |
| IP stopnja zaščite | IP20 conforming to EN 61131-2 class 1 |
| Stopnja onesnaženosti | 2 conforming to IEC 60664-1 |
| Temperatura okoliškega zraka za skladiščenje | -40-85 °C |
| relative humidity | 95-95 % at 60-60 °C without condensation |
| Nadmorska višina delovanja | <= 2000 m |
| Certifikati izdelkov | UL FM Class 1 Division 2 CSA |
| Odporno proti udarcu | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Odpornost proti vibracijam | +/-0.35 mm at 10-58 Hz 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail |
