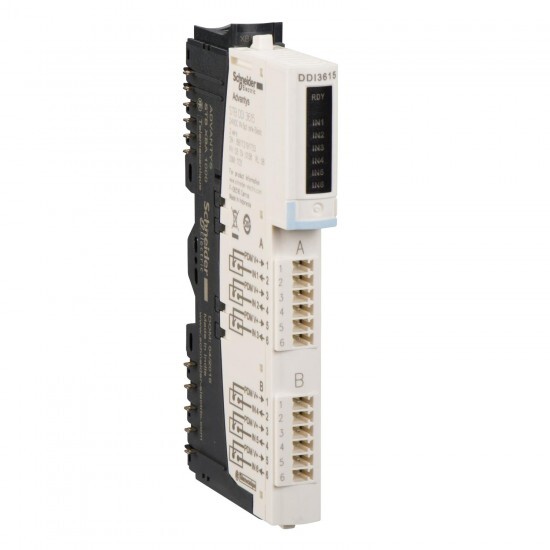

Opis
basic digital input kit STB - 24 V DC - 6 I
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Modicon STB distributed I/O solution |
| Izdelek ali sestavni del | basic digital input kit |
| kit composition | STBXTS1100, 6-terminal screw type connector STBDDI3615 module STBXBA1000 base STBXTS2100, 6-terminal spring clamp connector |
| discrete input number | 6 |
| discrete input voltage | 24 V |
| discrete input voltage type | DC |
| Komplementarno | |
| Višina | 18.4 mm |
| Teža izdelka | 0.112 kg |
| Širina | 125 mm |
| Globina | 65.1 mm |
| [Us] rated supply voltage | 24 V DC |
| Poraba toka | 45 mA at 5 V DC for logic bus |
| product compatibility | power distribution module STBPDT3100/3105 I/O base STBXBA1000 |
| protection type | power protection integrated fuse on PDM time lag 5 A input protection resistor-limited reverse polarity protection |
| Označevanje | CE |
| status LED | 1 LED (green)module status (RDY): 1 LED per channel (green)channel status (IN1 to IN6): |
| overvoltage category | II |
| response time | 5.25 ms off-to-on 5.75 ms on-to-off |
| discrete input logic | positive |
| supply | power distribution module |
| insulation between channels and logic bus | 1500 V for 1 minute |
| cold swapping | yes |
| absolute maximum voltage | 56 V 1.3 ms |
| hot swapping fallback | yes for basic NIMs |
| discrete input current | 4.5 mA |
| current state 1 guaranteed | >= 2.5 mA |
| current state 0 guaranteed | <= 0.5 mA |
| input voltage limits | 15...30 V at state 1 -3...5 V at state 0 |
| permissible voltage | 30 V |
| input filtering | 5 ms |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 0-60 °C (without) 32...140 °F without |
| IP stopnja zaščite | IP20 conforming to EN 61131-2 class 1 |
| Stopnja onesnaženosti | 2 conforming to IEC 60664-1 |
| Temperatura okoliškega zraka za skladiščenje | -40...185 °F without -40-85 °C without |
| relative humidity | 95-95 % at 60-60 °C without condensation |
| Nadmorska višina delovanja | <= 2000 m |
| Certifikati izdelkov | UL FM Class 1 Division 2 CSA |
| Standardi | EN/IEC 61131-2 type 1 |
| Odporno proti udarcu | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Odpornost proti vibracijam | 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail +/-0.35 mm at 10-58 Hz |
