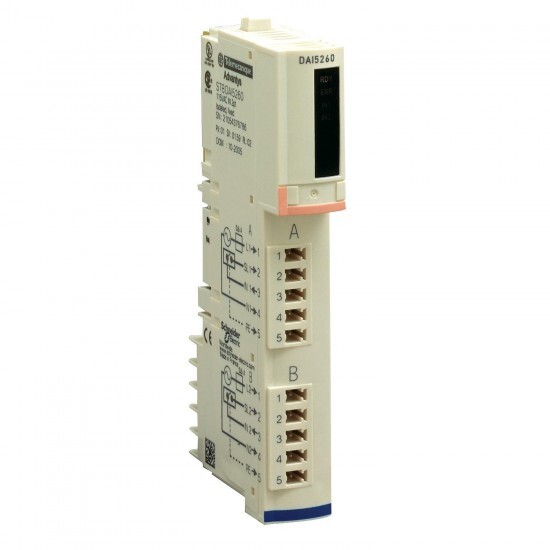

STBDAI5260K Schneider Electric
STBDAI5260K Schneider Electric
Opis
standard digital input kit STB - 115 V AC - 2 I
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Modicon STB distributed I/O solution |
| Izdelek ali sestavni del | standard digital input kit |
| kit composition | STBXTS1110, 5-terminal screw type connector STBXTS2110, 5-terminal spring clamp connector STBXBA2000 base STBDAI5260 module |
| discrete input number | 2 |
| discrete input voltage | 115 V |
| discrete input voltage type | AC |
| Komplementarno | |
| network frequency | 50/60 Hz |
| Višina | 18.4 mm |
| Teža izdelka | 0.065 kg |
| Širina | 125 mm |
| Globina | 65.1 mm |
| [Us] rated supply voltage | 115/230 V AC |
| Poraba toka | 45 mA at 5 V DC for logic bus |
| product compatibility | I/O base STBXBA2000 power distribution module STBPDT2100/2105 |
| protection type | input protection metal oxide varistor limited power protection external fuse 0.5 A |
| Označevanje | CE |
| status LED | 1 LED (green)module status (RDY): 1 LED per channel (green)channel status (IN1 to IN2): 1 LED (red)module error (ERR): |
| overvoltage category | II |
| response time | 1.5 ms off-to-on 1.5 ms on-to-off |
| discrete input logic | positive or negative |
| supply | power distribution module |
| insulation between channels and logic bus | 1780 V for 1 minute |
| cold swapping | yes |
| absolute maximum voltage | 200 V 20 ms |
| hot swapping fallback | yes for standard NIMs |
| network frequency limits | 47-63 Hz |
| current state 1 guaranteed | >= 4 mA |
| current state 0 guaranteed | <= 2 mA |
| input voltage limits | 0...20 V at state 0 74...132 V at state 1 |
| permissible voltage | 132 V |
| insulation between channels | 1780 V for 1 minute |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 0-60 °C (without) 32...140 °F without |
| IP stopnja zaščite | IP20 conforming to EN 61131-2 class 1 |
| Stopnja onesnaženosti | 2 conforming to IEC 60664-1 |
| Temperatura okoliškega zraka za skladiščenje | -40...185 °F without -40-85 °C without |
| relative humidity | 95-95 % at 60-60 °C without condensation |
| Nadmorska višina delovanja | <= 2000 m |
| Certifikati izdelkov | FM Class 1 Division 2 UL CSA |
| Standardi | EN/IEC 61131-2 type 1 |
| Odporno proti udarcu | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Odpornost proti vibracijam | 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail +/-0.35 mm at 10-58 Hz |
