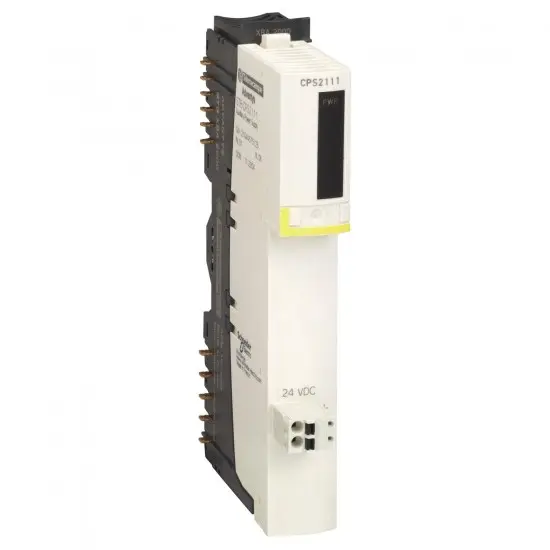

STBCPS2111K Schneider Electric
STBCPS2111K Schneider Electric
Opis
Modicon STB - auxiliary power supply kit - for logic of I/O module
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Modicon STB distributed I/O solution |
| Izdelek ali sestavni del | auxiliary power supply kit |
| product specific application | supply for logic of I/O module |
| Komplementarno | |
| [Us] rated supply voltage | 24 V |
| Omejitve napajalne napetosti | 19.2-30 V |
| output voltage | 5.25 V +/- 0.21 % logic bus |
| electrical connection | 2 pins for removable connector for power supply |
| Označevanje | CE |
| input current | 400 mA |
| overvoltage category | II |
| kit composition | terminal spring clamp connector STBXBA2100 base STBCPS2111 module terminal screw type connector |
| supply circuit type | DC |
| power supply output current | 1.2 A |
| output voltage type | DC |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C (without) |
| IP stopnja zaščite | IP20 conforming to EN 61131-2 class 1 |
| Stopnja onesnaženosti | 2 conforming to IEC 60664-1 |
| Temperatura okoliškega zraka za skladiščenje | -40-85 °C |
| relative humidity | 95-95 % at 60-60 °C without condensation |
| Nadmorska višina delovanja | <= 2000 m |
| Certifikati izdelkov | UL CSA FM Class 1 Division 2 |
| Odporno proti udarcu | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Odpornost proti vibracijam | 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail +/-0.35 mm at 10-58 Hz |
| Elektromagnetna kompatibilnost | immunity to electromagnetic interference conforming to IEC 61131-2 |
