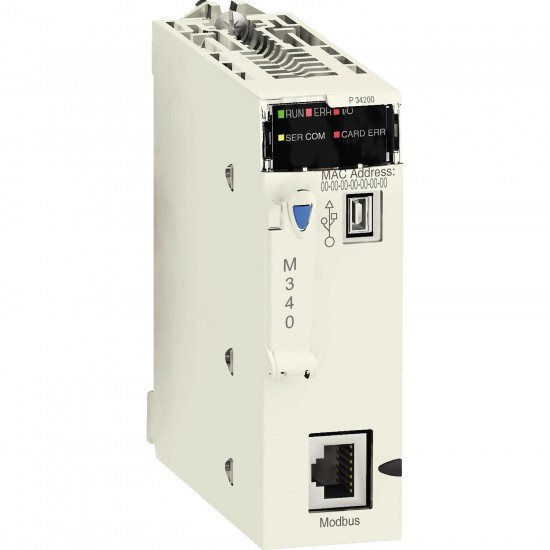

BMXP342000 Schneider Electric
BMXP342000 Schneider Electric
Opis
processor module M340 - max 1024 discrete + 256 analog I/O - Modbus
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Modicon M340 automation platform |
| Izdelek ali sestavni del | processor module |
| number of racks | 1 |
| analogue I/O processor capacity | 256 I/O multi-rack configuration 66 I/O single-rack configuration |
| number of slots | 11 |
| monitoring | diagnostic counters Modbus event counters Modbus |
| number of application specific channel | 36 |
| discrete I/O processor capacity | 1024 I/O single-rack configuration |
| Komplementarno | |
| Teža izdelka | 0.2 kg |
| Poraba toka | 72 mA at 24 V DC |
| Označevanje | CE |
| status LED | 1 LED (green)processor running (RUN): 1 LED (red)I/O module fault (I/O): 1 LED (red)memory card fault (CARD ERR): 1 LED (red)processor or system fault (ERR): 1 LED (yellow)activity on Modbus (SER COM): |
| number of addresses | 0-248 for character mode 0-248 for Modbus |
| supply | internal power supply via rack |
| integrated connection type | non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS232C, transmission mode: 2 twisted shielded pairs at 0.3...19.2 kbit/s full duplex non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS232C, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex USB port at 12 Mbit/s |
| number of devices | 2 point-to-point character mode 2 point-to-point Modbus |
| application structure | 1 cyclic/periodic master task 1 periodic fast task no auxiliary task 32 event tasks |
| maximum size of object areas | 128 kB unlocated internal data 16250 %Mi located internal bits 32464 %MWi internal words located internal data 32760 %KWi constant words located internal data |
| system overhead | 0.2 ms for fast task 1.05 ms for master task |
| execution time per instruction | 0.18 µs Boolean 0.26 µs double-length words 0.38 µs single-length words 1.74 µs floating points |
| memory description | internal RAM 2048 kB internal RAM 128 kB data internal RAM 1792 kB program constants and symbols supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data |
| number of devices per segment | 0-32 (character mode) 0-32 (Modbus) |
| communication module processor capacity | 2 Ethernet communication module 4 AS-Interface module |
| requests | 1 K data bytes per request character mode 252 data bytes per RTU request Modbus 504 data bytes per ASCII request Modbus |
| default size of object areas | 128 %KWi constant words located internal data 256 %Mi located internal bits 512 %MWi internal words located internal data |
| maximum tap links length | <15 m serial link non isolated character mode segment <15 m serial link non isolated Modbus segment <40 m serial link isolated character mode segment <40 m serial link isolated Modbus segment |
| control parameter | one CRC on each frame (RTU) Modbus one LRC on each frame (ASCII) character mode one LRC on each frame (ASCII) Modbus |
| number of instructions per ms | 4.2 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 5.4 Kinst/ms 100 % Boolean |
| bus length | 0-10 m serial link non isolated character mode segment 0-10 m serial link non isolated Modbus segment 0-1000 m serial link isolated character mode segment 0-1000 m serial link isolated Modbus segment 0-15 m character mode point-to-point 0-15 m Modbus point-to-point |
| control channels | programmable loops |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 0-60 °C |
| IP stopnja zaščite | IP20 |
| relative humidity | 10-95 % without condensation |
| Standardi | EN 61131-2 EN 61000-6-4 EN 61000-6-2 EN 61010-2-201 |
| Zaščitna obdelava | TC |
| directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2012/19/EU - WEEE directive |
