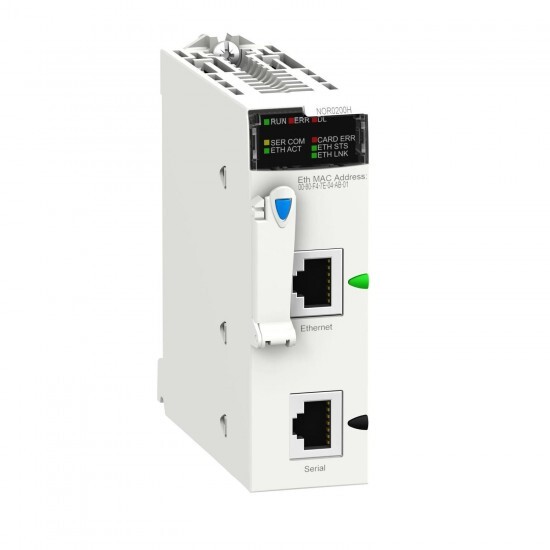

BMXNOR0200H Schneider Electric
BMXNOR0200H Schneider Electric
Opis
Ethernet / Serial RTU module - 2 x RJ45
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Modicon X80 |
| Izdelek ali sestavni del | Ethernet/Serial RTU module |
| product specific application | for standard & severe environments |
| environmental characteristic | fungal spore resistant class 3B2 gas resistant class Gx gas resistant class 3C4 dust resistant class 3S4 sand resistant class 3S4 salt resistant level 2 mold growth resistant class 3B2 |
| integrated connection type | Ethernet RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30 serial RS232/485 RJ45 300/38400 bit/s 1 twisted pair transparent ready class C30 |
| concept | Transparent Ready |
| protective treatment | conformal coating |
| Komplementarno | |
| Teža izdelka | 0.2 kg |
| local signalling | 1 LED (green)activity on Ethernet network (ETH ACT): 1 LED (green)processor running (RUN): 1 LED (green)status of Ethernet network (ETH STS): 1 LED (red)memory card fault (CARD ERR): 1 LED (red)processor or system fault (ERR): 1 LED (red)download in progress (DL): 1 LED (yellow)serial communication (SER COM): 1 LED (green)data rate (ETH LINK): |
| Poraba toka | 95 mA at 24 V DC |
| supply | internal power supply via rack |
| communication service | bandwidth management Modbus TCP messaging DNP3/DNP3 IP protocol IEC 60870-5 -101/-104 protocol time stamped events management external modem management (serial, PSTN, GSM, GPRS/3G) data logging in CSV files Email/SMS notifications web server, rack viewer, data editor BootP, DHCP, FDR client SMTP server, FTP client/server, NTP client, SNMP agent, automatic events backup on power loss multi-protocols support in a single module (master and slave) transparent events routing from remote slaves to SCADA |
| port Ethernet | 10BASE-T/100BASE-TX |
| module format | standard |
| memory usage | activating the standard web server user web pages storage data logging CSV files storage |
| memory description | supplied Flash SD memory card (BMXRWS128MWF) 128000 kB |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP20 |
| relative humidity | 10-95 % without condensation |
| Certifikati izdelkov | UL 508 |
| Standardi | EN 61131-2 EN 61000-6-4 EN 61000-6-2 EN 61010-2-201 |
| directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2012/19/EU - WEEE directive |
| marking | CE |
