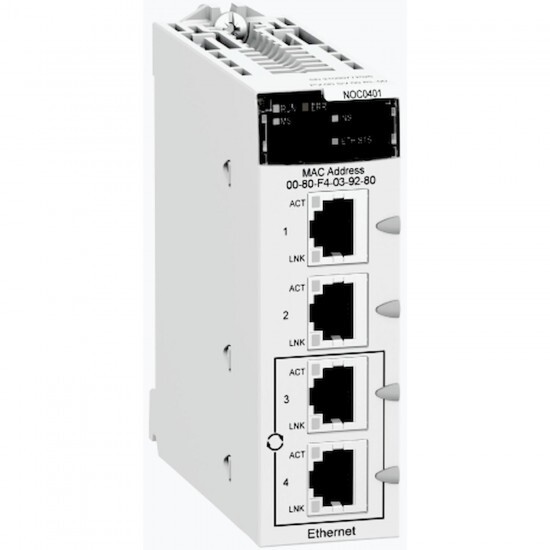

BMXNOC0401 Schneider Electric

Ethernet module M340 - 4 x RJ45 10/100

Glavno
Serija izdelka	Modicon M340 automation platform
Izdelek ali sestavni del	Ethernet TCP/IP network module
integrated connection type	Ethernet RJ45 10/100 Mbit/s 4 twisted pairs transparent ready class B30
concept	Transparent Ready
protective treatment	TC
Komplementarno
Teža izdelka	0.2 kg
control type	processor or system fault (ERR)
local signalling	1 LED (green)processor running (RUN): 1 LED (red)processor or system fault (ERR): 1 LED (amber)status of Ethernet network (ETH STS): 1 LED (green/red)MS (Module Status): 1 LED (green/red)NS (Network Status):
Poraba toka	555 mA at 3.3 V DC
supply	internal power supply via rack
communication service	bandwidth management Data Editor (via PC terminal) FDR server Rack Viewer SNMP network administrator Modbus TCP I/O Scanner and Messaging Ethernet/IP I/O Scanner and Messaging embedded 4-port switch RSTP support port mirroring
port Ethernet	10BASE-T/100BASE-TX
module format	standard
memory usage	application saving activating the standard web server
Okolje
Temperatura okoliškega zraka za delovanje	0-60 °C
IP stopnja zaščite	IP20
relative humidity	10-95 % without condensation
Certifikati izdelkov	UL 508 ODVA
Standardi	EN 61131-2 EN 61000-6-4 EN 61000-6-2 EN 61010-2-201
directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2012/19/EU - WEEE directive
marking	CE
