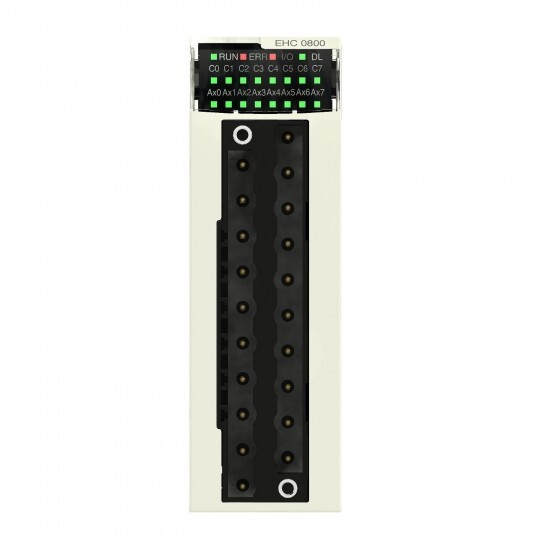

BMXEHC0800H Schneider Electric
BMXEHC0800H Schneider Electric
Opis
high speed counter module M340 - 8 channels
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Modicon M340 automation platform |
| Izdelek ali sestavni del | counter module |
| product specific application | for severe environments |
| Druge vhodne napetosti | 24 V DC type 3 |
| number of channels | 8 |
| input compatibility | 19.2-30 V 2-wire/3-wire proximity sensor incremental encoder with push-pull outputs, 10...30 V totem pole |
| number of inputs | 2-2 (single mode) 3-3 (special dual phase mode) |
| maximum counting frequency | 10000 Hz |
| Komplementarno | |
| Teža izdelka | 0.113 kg |
| Poraba toka | 200 mA at 3.3 V DC bus 80 mA at 24 V DC sensor |
| electrical connection | 1 connector with 20 pins |
| input current | 2 mA at 11 V |
| voltage state 0 guaranteed | < 5 V |
| voltage state 1 guaranteed | 11...30 V |
| input type | high speed |
| module format | standard |
| current state 1 guaranteed | >= 6 mA |
| current state 0 guaranteed | <= 1.5 mA |
| input voltage limits | 19.2...30 V at 60 °C 26.4 V at 70 °C |
| isolation voltage | 1500 V for 60 s |
| cycle time | 5 ms |
| counter functions | count events up/down counter loop (modulo) counting frequency meter down counting 32-bit counter counting |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP20 |
| relative humidity | 10-95 % without condensation |
| Standardi | EN 61131-2 EN 61000-6-4 EN 61000-6-2 EN 61010-2-201 |
| Zaščitna obdelava | conformal coating |
| environmental characteristic | gas resistant class Gx gas resistant class 3C4 dust resistant class 3S4 sand resistant class 3S4 salt resistant level 2 mold growth resistant class 3B2 fungal spore resistant class 3B2 |
| directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2012/19/EU - WEEE directive |
