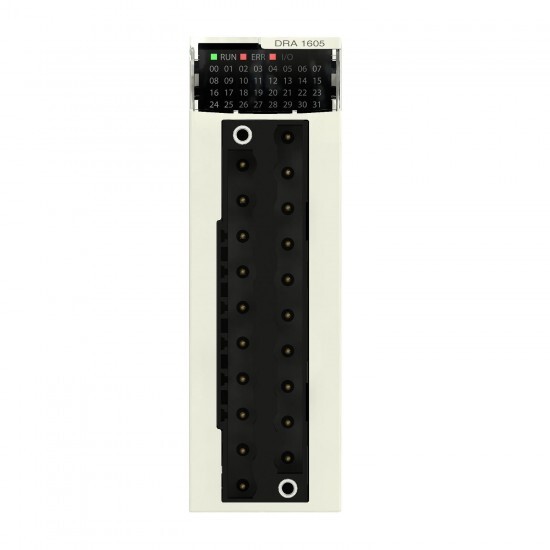

BMXDRA1605H Schneider Electric
BMXDRA1605H Schneider Electric
Opis
discrete output module X80 - 16O relay - 24VDC - 24..240VAC - severe environment
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Modicon X80 |
| Izdelek ali sestavni del | discrete output module |
| product specific application | for severe environments |
| discrete output type | relay |
| discrete output voltage | 24 V 19...30 V DC 240 V 19…264 V AC |
| discrete output number | 16 conforming to EN/IEC 61131-2 |
| Komplementarno | |
| Teža izdelka | 0.15 kg |
| electrical durability | AC-15: 100000 cycles at 240 VA 200 V (load factor 0.7 ) AC-15: 100000 cycles at 120 VA 200 V (load factor 0.35 ) AC-12: 100000 cycles at 200 VA 100 V AC-12: 100000 cycles at 80 VA 48 V AC-12: 100000 cycles 24 V AC-15: 100000 cycles at 120 VA 100 V DC-12: 100000 cycles at 24 W 24 V DC-13: 100000 cycles at 10 W 24 V DC-13: 100000 cycles at 10 W 48 V AC-15: 300000 cycles at 72 VA 200 V (load factor 0.7 ) AC-15: 300000 cycles at 36 VA 200 V (load factor 0.35 ) AC-12: 300000 cycles at 200 VA 200 V AC-12: 300000 cycles at 80 VA 100 V AC-12: 300000 cycles at 50 VA 48 V AC-15: 300000 cycles at 36 VA 100 V AC-15: 300000 cycles at 72 VA 100 V AC-15: 300000 cycles at 36 VA 48 V AC-15: 300000 cycles at 72 VA 48 V AC-15: 300000 cycles at 36 VA 24 V AC-15: 300000 cycles at 72 VA 24 V DC-13: 300000 cycles at 3 W 24 V DC-13: 300000 cycles at 3 W 48 V DC-13: 7000 cycles at 24 W 24 V DC-13: 7000 cycles at 24 W 48 V DC-12: 50000 cycles at 24 W 48 V |
| [Ith] conventional free air thermal current | 2 A |
| status LED | 1 LED (green)RUN: 1 LED per channel (green)channel diagnostic: 1 LED (red)ERR: 1 LED (red)I/O: |
| insulation resistance | > 10 MOhm 500 V DC |
| response time on output | <= 8 ms activation <= 10 ms deactivation |
| minimum switching current | 1 mA 5 V DC |
| typical current consumption | 79 mA at 3.3 V DC |
| maximum power dissipation in W | 3 W |
| output overvoltage protection | use discharge diode on each output DC use RC circuit on each output AC use ZNO surge limiter on each output AC |
| output short-circuit protection | use 1 fast blow fuse per channel or group of channel |
| output overload protection | use 1 fast blow fuse per channel or group of channel |
| MTBF reliability | 1357810 H |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP20 |
| Temperatura okoliškega zraka za skladiščenje | -40-85 °C |
| relative humidity | 5-95 % at 55-55 °C without condensation |
| Nadmorska višina delovanja | 0...2000 m 2000...5000 m with derating factor |
| Certifikati izdelkov | EAC ATEX CSA UL CE RCM Merchant Navy IEC-Ex |
| Odporno proti udarcu | 30 gn |
| Odpornost proti vibracijam | 3 gn |
| Zaščitna obdelava | conformal coating |
| environmental characteristic | gas resistant class Gx gas resistant class 3C4 dust resistant class 3S4 sand resistant class 3S4 salt resistant level 2 mold growth resistant class 3B2 fungal spore resistant class 3B2 |
| directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2012/19/EU - WEEE directive |
| dielectric strength | 2000 V AC at 50/60 Hz 1 min |
