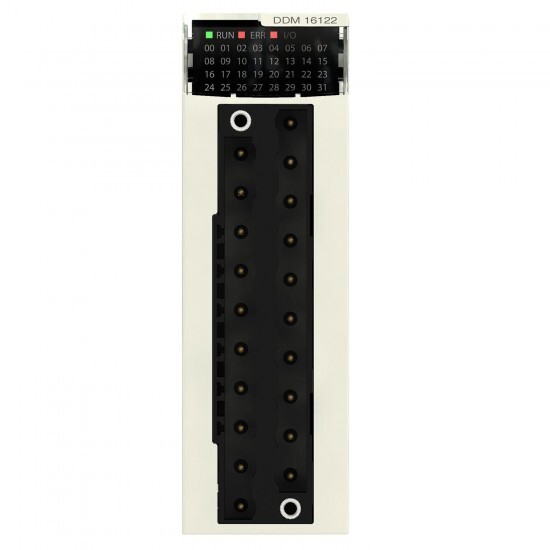

BMXDDM16022H Schneider Electric
BMXDDM16022H Schneider Electric
Opis
discrete I/O module X80 - 8 I - 24 V DC - 8 O - solid state- severe environment
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Modicon X80 |
| Izdelek ali sestavni del | discrete I/O module |
| product specific application | for severe environments |
| discrete output type | solid state |
| discrete output voltage | 24 V 19...30 V DC at 60 °C 24 V 26.4 V DC at 70 °C |
| discrete output number | 8 |
| discrete output current | 0.5 A |
| discrete input number | 8 |
| discrete input voltage | 24 V DC, discrete input logic: positive |
| discrete input current | 3.5 mA |
| input compatibility | with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2 |
| input type | current sink (logic positive) |
| Komplementarno | |
| Teža izdelka | 0.115 kg |
| Poraba toka | <= 111 mA at 3.3 V DC <= 67 mA at 24 V DC |
| protection type | 1 external fuse per group of input channel0.5 A fast blow overvoltage protection on output reverse polarity protection on input reverse polarity protection on output |
| voltage state 0 guaranteed | <= 5 V |
| voltage state 1 guaranteed | >= 11 V |
| switching frequency | 0.5/LI² Hz |
| status LED | 1 LED (green)module operating (RUN): 1 LED per channel (green)channel diagnostic: 1 LED (red)module error (ERR): 1 LED (red)module I/O: |
| insulation resistance | > 10 MOhm 500 V DC |
| response time on output | 1.2 ms |
| maximum leakage current | 0.5 mA at state 0 |
| typical current consumption | 100 mA at 3.3 V DC 30 mA at 24 V DC |
| maximum power dissipation in W | 3.7 W |
| maximum current per module | 5 A 60 °C 4.4 A 70 °C |
| output overvoltage protection | with transil diode |
| output short-circuit protection | with 2 A external fuse |
| output overload protection | with electronic circuit breaker 1.5 In < Id < 2 In with current limiter |
| current per channel | 0.55 A at 70 °C 0.625 A at 60 °C |
| voltage detection threshold | < 14 V DC preactuator fault < 14 V DC sensor fault > 18 V DC preactuator OK > 18 V DC sensor OK |
| maximum tungsten load | 6 W |
| [Ures] residual voltage | 1.2 V at state 1 |
| reverse polarity protection | reverse mounted diode |
| load impedance ohmic | <= 48 Ohm |
| paralleling of outputs | yes : 2 maximum |
| current state 1 guaranteed | >= 3 mA |
| current state 0 guaranteed | <= 1.5 mA |
| input impedance | 6800 Ohm |
| MTBF reliability | 447581 H |
| sensor power supply | 26.4-26.4 V at 70 °C 19-30 V |
| maximum overload time | 15 ms |
| DC typical filtering time | 4 ms |
| DC maximum filtering time | 7 ms |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP20 |
| Temperatura okoliškega zraka za skladiščenje | -40-85 °C |
| relative humidity | 5-95 % at 55-55 °C without condensation |
| Nadmorska višina delovanja | 0...2000 m 2000...5000 m with derating factor |
| Certifikati izdelkov | CSA RCM Merchant Navy IEC-Ex EAC CE ATEX UL |
| Standardi | EN 61131-2 EN 61000-6-4 EN 61000-6-2 EN 61010-2-201 |
| Odporno proti udarcu | 30 gn |
| Odpornost proti vibracijam | 3 gn |
| Zaščitna obdelava | conformal coating |
| environmental characteristic | gas resistant class Gx gas resistant class 3C4 dust resistant class 3S4 sand resistant class 3S4 salt resistant level 2 mold growth resistant class 3B2 fungal spore resistant class 3B2 |
| directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2012/19/EU - WEEE directive |
| dielectric strength | 1500 V AC at 50/60 Hz 1 minute, output/ground 1500 V AC at 50/60 Hz 1 minute, output/internal logic 1500 V AC at 50/60 Hz 1 minute, primary/secondary 500 V DC 1 minute, between group of inputs and outputs |
