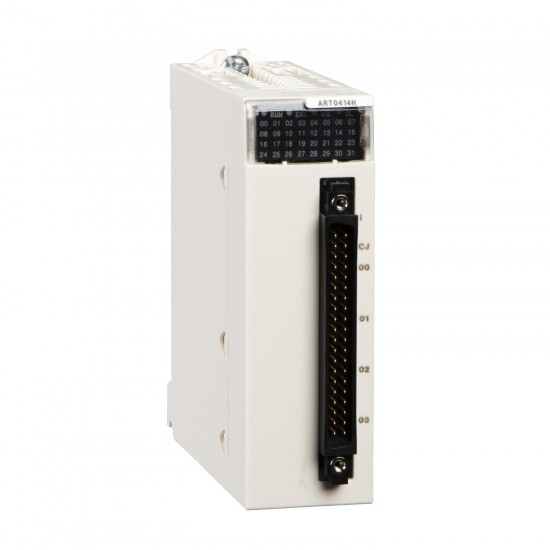

BMXART0414H Schneider Electric
BMXART0414H Schneider Electric
Opis
analog input module X80 - 4 inputs +/- 40 mV
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Modicon X80 |
| Izdelek ali sestavni del | analog input module |
| electrical connection | 40 ways 1 connector |
| product specific application | for severe environments |
| analogue input type | voltage +/- 1.28 V voltage +/- 160 mV voltage +/- 320 mV voltage +/- 40 mV voltage +/- 640 mV voltage +/- 80 mV resistor 400 Ohm 2 wires resistor 400 Ohm 3 wires resistor 400 Ohm 4 wires resistor 4000 Ohm 2 wires resistor 4000 Ohm 3 wires resistor 4000 Ohm 4 wires temperature probe -100...+260 °C Cu 10 temperature probe -100...+450 °C Pt 100 conforming to UL/JIS temperature probe -100...+450 °C Pt 1000 conforming to UL/JIS temperature probe -200...+850 °C Pt 100 conforming to IEC temperature probe -200...+850 °C Pt 1000 conforming to IEC temperature probe -60...+180 °C Ni 100 temperature probe -60...+180 °C Ni 1000 thermocouple +130...+1820 °C thermocouple B thermocouple +270...+1300 °C thermocouple N thermocouple -200...+600 °C thermocouple U thermocouple -200...+760 °C thermocouple J thermocouple -200...+900 °C thermocouple L thermocouple -270...+1000 °C thermocouple E thermocouple -270...+1370 °C thermocouple K thermocouple -270...+400 °C thermocouple T thermocouple -50...+1769 °C thermocouple R thermocouple -50...+1769 °C thermocouple S |
| analogue input number | 4 |
| input level | low level |
| input output isolation | isolated |
| Komplementarno | |
| Teža izdelka | 0.135 kg |
| Poraba toka | 150 mA at 3.3 V DC |
| status LED | 1 LED (green)RUN: 1 LED per channel (green)channel diagnostic: 1 LED (red)ERR: 1 LED (red)I/O: |
| protective treatment | conformal coating |
| temperature drift | 25 ppm/°C 400 Ohm 25 ppm/°C 4000 Ohm 25 ppm/°C Ni 1000 25 ppm/°C thermocouple B 25 ppm/°C thermocouple E 25 ppm/°C thermocouple J 25 ppm/°C thermocouple K 25 ppm/°C thermocouple L 25 ppm/°C thermocouple N 25 ppm/°C thermocouple R 25 ppm/°C thermocouple S 25 ppm/°C thermocouple T 25 ppm/°C thermocouple U 30 ppm/°C +/- 1.28 V 30 ppm/°C +/- 160 mV 30 ppm/°C +/- 320 mV 30 ppm/°C +/- 40 mV 30 ppm/°C +/- 640 mV 30 ppm/°C +/- 80 mV 30 ppm/°C Cu 10 30 ppm/°C Ni 100 30 ppm/°C Pt 100 30 ppm/°C Pt 1000 |
| operating altitude | 0...2000 m 2000...5000 m with derating factor |
| input impedance | 10 MOhm |
| analogue input resolution | 15 bits + sign |
| measurement error | +/- 0.7 °C Ni 1000 25 °C +/- 2.1 °C Ni 100 25 °C +/- 2.1 °C Pt 100 25 °C +/- 2.1 °C Pt 1000 25 °C +/- 2.7 °C thermocouple U 25 °C +/- 2.8 °C thermocouple J 25 °C +/- 3 °C thermocouple L 25 °C +/- 3.2 °C thermocouple R 25 °C +/- 3.2 °C thermocouple S 25 °C +/- 3.5 °C thermocouple B 25 °C +/- 3.7 °C thermocouple E 25 °C +/- 3.7 °C thermocouple K 25 °C +/- 3.7 °C thermocouple N 25 °C +/- 3.7 °C thermocouple T 25 °C +/- 4 °C Cu 10 25 °C 0.05 % of full scale +/- 1.28 V 25 °C 0.05 % of full scale +/- 160 mV 25 °C 0.05 % of full scale +/- 320 mV 25 °C 0.05 % of full scale +/- 40 mV 25 °C 0.05 % of full scale +/- 640 mV 25 °C 0.05 % of full scale +/- 80 mV 25 °C 0.12 % of full scale 400 Ohm 25 °C 0.12 % of full scale 4000 Ohm 25 °C +/- 1.5 °C Ni 1000 - 25...70 °C +/- 3.5 °C Ni 100 - 25...70 °C +/- 3.5 °C Pt 100 - 25...70 °C +/- 3.5 °C Pt 1000 - 25...70 °C +/- 4.5 °C Cu 10 - 25...70 °C +/- 5.5 °C thermocouple J - 25...70 °C +/- 5.5 °C thermocouple L - 25...70 °C +/- 5.5 °C thermocouple R - 25...70 °C +/- 5.5 °C thermocouple S - 25...70 °C +/- 5.5 °C thermocouple U - 25...70 °C +/- 6 °C thermocouple B - 25...70 °C +/- 6 °C thermocouple E - 25...70 °C +/- 6 °C thermocouple K - 25...70 °C +/- 6 °C thermocouple N - 25...70 °C +/- 6 °C thermocouple T - 25...70 °C <= 0.2 % of full scale +/- 1.28 V - 25...70 °C <= 0.2 % of full scale +/- 160 mV - 25...70 °C <= 0.2 % of full scale +/- 320 mV - 25...70 °C <= 0.2 % of full scale +/- 40 mV - 25...70 °C <= 0.2 % of full scale +/- 640 mV - 25...70 °C <= 0.2 % of full scale +/- 80 mV - 25...70 °C <= 0.3 % of full scale 400 Ohm - 25...70 °C <= 0.3 % of full scale 4000 Ohm - 25...70 °C |
| cold junction compensation | external by Pt100 probe |
| permitted overload on inputs | +/- 7.5 V +/- 1.28 V +/- 7.5 V +/- 160 mV +/- 7.5 V +/- 320 mV +/- 7.5 V +/- 40 mV +/- 7.5 V +/- 640 mV +/- 7.5 V +/- 80 mV |
| maximum conversion value | +/- 100 % 400 Ohm +/- 100 % 4000 Ohm +/- 102.5 % +/- 1.28 V +/- 102.5 % +/- 160 mV +/- 102.5 % +/- 320 mV +/- 102.5 % +/- 40 mV +/- 102.5 % +/- 640 mV +/- 102.5 % +/- 80 mV |
| type of filter | first order digital filtering |
| recalibration | internal |
| nominal read cycle time | 200 ms with thermocouple 400 ms with temperature probe |
| analog/digital conversion | sigma delta 16 bits |
| measurement resolution | 0.1 °C Cu 10 0.1 °C Ni 100 0.1 °C Ni 1000 0.1 °C Pt 100 0.1 °C Pt 1000 0.1 °C thermocouple B 0.1 °C thermocouple E 0.1 °C thermocouple J 0.1 °C thermocouple K 0.1 °C thermocouple L 0.1 °C thermocouple N 0.1 °C thermocouple R 0.1 °C thermocouple S 0.1 °C thermocouple T 0.1 °C thermocouple U 1280/2exp14 mV +/- 1.28 V 160/2exp14 mV +/- 160 mV 320/2exp14 mV +/- 320 mV 40/2exp14 mV +/- 40 mV 40/2exp14 mV 400 Ohm 4000/2exp14 mV 4000 Ohm 640/2exp14 mV +/- 640 mV 80/2exp14 mV +/- 80 mV |
| common mode rejection | 120 dB 50/60 Hz |
| differential mode rejection | 60 dB 50/60 Hz |
| detection type | open circuit Cu 10 open circuit Ni 100 open circuit Ni 1000 open circuit Pt 100 open circuit Pt 1000 open circuit thermocouple B open circuit thermocouple E open circuit thermocouple J open circuit thermocouple K open circuit thermocouple L open circuit thermocouple N open circuit thermocouple R open circuit thermocouple S open circuit thermocouple T open circuit thermocouple U |
| maximum wiring resistance | 20 Ohm 2 wires Cu 10 20 Ohm 2 wires Ni 100 20 Ohm 2 wires Pt 100 20 Ohm 3 wires Cu 10 20 Ohm 3 wires Ni 100 20 Ohm 3 wires Pt 100 200 Ohm 2 wires Ni 1000 200 Ohm 2 wires Pt 1000 200 Ohm 3 wires Ni 1000 200 Ohm 3 wires Pt 1000 50 Ohm 4 wires Cu 10 50 Ohm 4 wires Ni 100 50 Ohm 4 wires Pt 100 500 Ohm 4 wires Ni 1000 500 Ohm 4 wires Pt 1000 |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP20 |
| Temperatura okoliškega zraka za skladiščenje | -40-85 °C |
| relative humidity | 5-95 % at 55-55 °C without condensation |
| Certifikati izdelkov | IEC-Ex Merchant Navy UL RCM EAC CSA CE ATEX |
| Standardi | EN 61131-2 EN 61000-6-4 EN 61000-6-2 EN 61010-2-201 |
| Odporno proti udarcu | 30 gn |
| Odpornost proti vibracijam | 3 gn |
| environmental characteristic | gas resistant class Gx gas resistant class 3C4 dust resistant class 3S4 sand resistant class 3S4 salt resistant level 2 mold growth resistant class 3B2 fungal spore resistant class 3B2 |
| directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2012/19/EU - WEEE directive |
