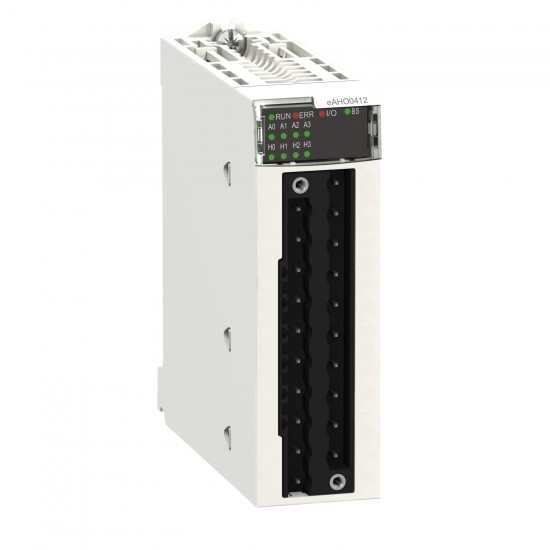

BMEAHO0412 Schneider Electric

analog ouput module X80 - 4 outputs HART - current Isolated

Glavno
Serija izdelka	Modicon X80
Izdelek ali sestavni del	analog output module
Komplementarno
Teža izdelka	0.223 kg
product compatibility	BMEP58... processor BMEXBP... backplane ABE7CPA21 head module BMECRA31210 BMXFTB20... terminal block
electrical connection	20 ways terminal block Telefast
function available	I/O mapping
analogue output type	current: 4...20 mA
analogue output number	4
load impedance ohmic	600 Ohm 0...20 mA 570 Ohm 0...21 mA
temperature drift	45 ppm/°C
isolation voltage	1000 V DC for 60 s between channels 1400 V DC for 60 s between channels and ground 1400 V DC for 60 s between channels and bus
checks	broken wire detection
topology	point-to-point
measurement error	0.1 % of full scale 25 °C 0.2 % of full scale 0...60 °C
application specific I/O	HART
analogue output resolution	15 bits + sign
input output isolation	isolated
Okolje
Temperatura okoliškega zraka za delovanje	0-60 °C
Standardi	EN 61131-2 EN 61000-6-4 EN 61000-6-2 EN 61010-2-201
directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2012/19/EU - WEEE directive
