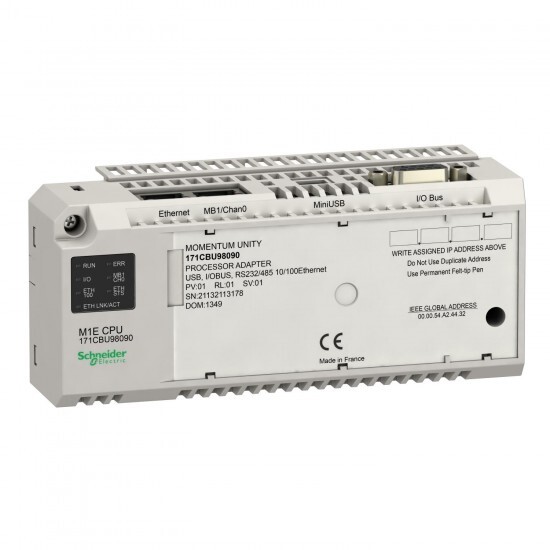

171CBU98090 Schneider
171CBU98090 Schneider
Opis
Unity M1E processor - RS232/485 - Ethernet - USB - I/O bus
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Modicon Momentum automation platform |
| Izdelek ali sestavni del | processor |
| Združljivost izdelkov | Modicon STB I/O |
| integrated connection type | Ethernet USB port |
| Komplementarno | |
| Višina | 60.6 mm |
| Teža izdelka | 0.163 kg |
| local signalling | 1 LED (green)processor running (RUN): 1 LED (red)processor or system fault (ERR): 1 LED (red)I/O module fault (I/O): 1 LED (yellow)channel 0 operating (CH0): 1 LED (green)data rate (ETH 100): 1 LED (green)data rate (ETH LINK): 1 LED (green)status of Ethernet network (ETH STS): |
| Širina | 144 mm |
| Globina | 53.47 mm |
| Poraba toka | 500 mA at 5 V DC |
| Omejitve napajalne napetosti | 4.75-5.25 V |
| Označevanje | CE |
| communication port protocol | Modbus RS485/RS232 - 1 RJ45 19200 bps - 2-wire Modbus TCP Ethernet - 1 RJ45 10/100 Mbps - twisted shielded pairs cable CAT 5E UTP |
| method of access | client/server master/slave |
| communication service | Modbus messaging 125 words, 200 I/O message per second Global Data, 1600 I/O message per second Modbus TCP I/O Scanner and Messaging |
| product mounting | 35 mm symmetrical DIN rail |
| number of devices | 32 Modbus |
| web services | CPU status Ethernet statistics bandwidth monitoring home pages properties |
| module format | standard |
| addressing | 1...247 Modbus unique IEEE global address Modbus TCP |
| memory description | program memory IEC 3584 kB program memory LL984 3584 kB |
| topology | multidrop Modbus star Modbus TCP |
| control parameter | CRC-16 for Modbus CRC-32 for Modbus TCP/IP |
| fail state | safe I/O mode |
| concept | Transparent Ready class B |
| clock frequency | 333 MHz |
| software designation | Unity Pro |
| processor name | Spear 320s |
| I/O limit processor capacity | 2048 inputs/2048 outputs |
| register words | 26048 |
| word length | 32 bit |
| exact time for 1 Kinstruction | 83 ns |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 0-60 °C |
| IP stopnja zaščite | IP20 |
| Temperatura okoliškega zraka za skladiščenje | -40-85 °C |
| relative humidity | 5-96 % |
| Nadmorska višina delovanja | <= 2000 m |
| Certifikati izdelkov | FM C-Tick |
| Odpornost na elektromagnetna polja | 15 V/m 80...2700 MHz conforming to EN/IEC 61000-4-3 |
| Standardi | UL 508 CSA C22.2 No 142 EN/IEC 61131-2 |
| Odporno proti udarcu | 15 gn during 11 ms sinusoidal vibrations |
| Odpornost na elektrostatično razelektritev | 6 kV contact conforming to EN/IEC 61131-2 zone B 6 kV contact conforming to IACS E10 8 kV on air conforming to EN/IEC 61000-4-2 |
| dielectric strength | 0 V not isolated RS485/RS232 5000 V for 1 minute Ethernet |
| material | lexan |
