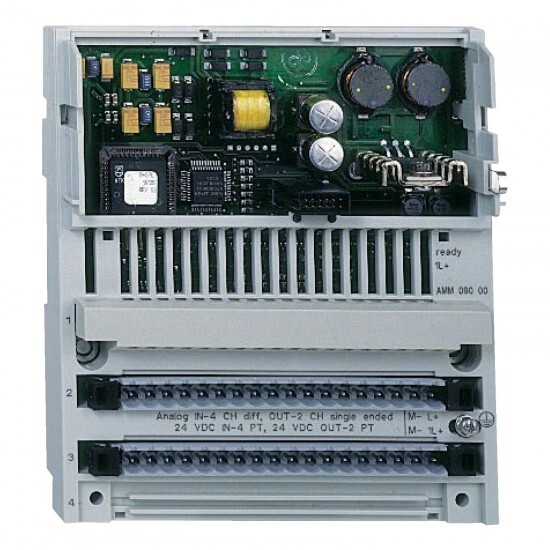

170ANR12090 Schneider
170ANR12090 Schneider
Opis
distributed analog/discrete I/O Modicon Momentum
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Modicon Momentum automation platform |
| Izdelek ali sestavni del | analogue,discrete I/O base |
| discrete output voltage | 10...30 V |
| analogue input type | single ended |
| analogue output range | 0...10 V 14 bits |
| discrete input voltage | 24 V DC |
| group of channels | 1 group of 8 discrete outputs 2 groups of 4 discrete inputs 1 group of 6 analog inputs 1 group of 4 analog outputs |
| analogue input range | 0...10 V |
| output overload protection | with discrete output |
| analogue input resolution | 14 bits 0...10 V |
| output short-circuit protection | with discrete output |
| Komplementarno | |
| Višina | 125 mm |
| Teža izdelka | 0.24 kg |
| local signalling | 4 LEDschannel status: |
| Širina | 141.5 mm |
| Globina | 47.5 mm |
| [Us] rated supply voltage | 24 V (19.2-30 V)DC |
| Poraba toka | 400 mA at 24 V DC |
| electrical connection | 2 connectors for removable terminal blocks |
| maximum voltage drop | <0.4 V 0.25 A at state on discrete output |
| Označevanje | CE |
| voltage state 0 guaranteed | <= 5 V for discrete input |
| voltage state 1 guaranteed | >= 11 V for discrete input |
| discrete output type | transistor |
| response time | 1.05 ms from state 1 to state 0 for discrete output 1.2 ms from state 0 to state 1 for discrete input 1.2 ms from state 0 to state 1 for discrete output 1.2 ms from state 1 to state 0 for discrete input |
| discrete input logic | positive |
| discrete input number | 8 conforming to IEC 1131-2 Type 2 |
| discrete output logic | positive |
| surge current | 2.5 A 1 ms discrete output |
| discrete output current | 2 A per group 2 A per module 0.25 A per point |
| maximum leakage current | 0.4 mA DC 30 V discrete output |
| maximum power dissipation in W | 6 W |
| current state 1 guaranteed | >= 6 mA (discrete input) |
| current state 0 guaranteed | <= 2 mA (discrete input) |
| input voltage limits | 3...32 V |
| isolation voltage | 500 V (duration = 1 min) between analogue I/O and operating voltage 500 V (duration = 1 min) between operating voltage and I/O from ground |
| conversion error | +/- 0.4 % 0...10 V 25 °C analogue output 0,002 0...10 V 25 °C analogue input circuit |
| conversion time | 0.75 ms analogue input circuit 1.2 ms analogue output |
| input resistance | 1 MOhm analogue input circuit |
| input overvoltage protection | 45-45 V 10 s discrete input |
| output load | >= 2 kOhm 0...10 V analogue output |
| fail state | for analogue output: hold for analogue output: reset to zero |
| maximum analogue input voltage | 15 V |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 0-60 °C |
| Temperatura okoliškega zraka za skladiščenje | -40-85 °C |
| relative humidity | 95-95 % without condensation |
| Nadmorska višina delovanja | <= 5000 m |
| Certifikati izdelkov | UL CSA |
| Odpornost na elektromagnetna polja | 10 V/m 80...1000 MHz conforming to IEC 801-3 |
| Odpornost na elektrostatično razelektritev | 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2 |
| Zaščitna obdelava | TC |
