Opis

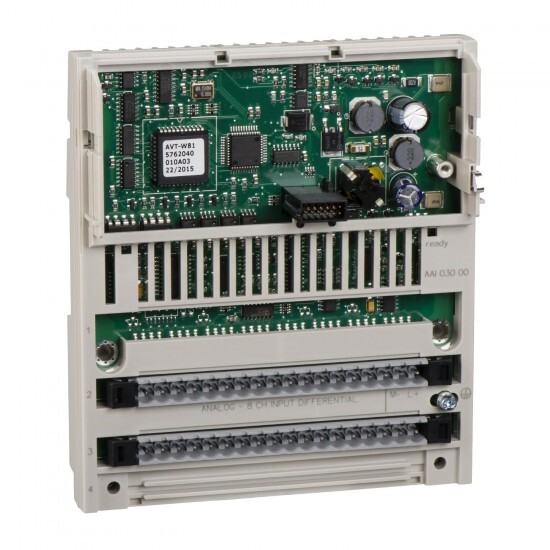

distributed analog input Modicon Momentum - 4 Input
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Modicon Momentum automation platform |
| Izdelek ali sestavni del | analogue input base |
| analogue input type | differential |
| analogue input number | 4 |
| analogue input range | +/- 100 mV 15 bits + sign > 10000 kOhm +/- 25 mV 15 bits + sign > 10000 kOhm |
| thermocouple type | thermocouple E thermocouple S thermocouple K thermocouple N thermocouple B thermocouple R thermocouple J thermocouple T |
| Komplementarno | |
| Višina | 125 mm |
| Teža izdelka | 0.215 kg |
| local signalling | 4 LEDschannel status: |
| Širina | 141.5 mm |
| Globina | 47.5 mm |
| Poraba toka | 305 mA at 24 V DC |
| protection type | internal 2 A slow-blow |
| electrical connection | 2 connectors for removable terminal blocks |
| Označevanje | CE |
| data format | full 16 bits signed |
| associated fuse rating | 500 mA, fast blow |
| maximum power dissipation in W | 5.5 W |
| reverse polarity protection | internal |
| update time | 500 ms |
| isolation between channels | 400 V DC |
| external power requirement | +/- 30 V DC |
| absolute accuracy error | +/- 21 µV 25 °C +/- 25 mV +/- 27 µV 25 °C +/- 100 mV +/- 46 µV 60 °C +/- 25 mV +/- 94 µV 60 °C +/- 100 mV |
| common mode rejection | 120 dB DC between channels 130 dB 50 Hz AC between channels 135 dB DC between channels to ground 140 dB 60 Hz AC between channels 145 dB 50 Hz AC between channels to ground 155 dB 60 Hz AC between channels to ground |
| isolation between channels and ground | 500 V AC for 1 minute |
| permissible common mode voltage | 100 V DC between channels to ground 115 V AC single or three phases between channels 200 V DC between channels 250 V AC between channels to ground 250 V AC single phase between channels |
| isolation between supply and ground | 500 V for 1 minute |
| temperature probe type | Ni 100 0.125 mA +/- 25 mV Ni 1000 0.125 mA +/- 100 mV Pt 100 0.125 mA +/- 25 mV Pt 1000 0.125 mA +/- 100 mV |
| serial mode rejection | 35 dB 50 Hz AC 45 dB 60 Hz AC |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 0-60 °C |
| Temperatura okoliškega zraka za skladiščenje | -40-85 °C |
| relative humidity | 95-95 % without condensation |
| Nadmorska višina delovanja | <= 5000 m |
| Certifikati izdelkov | FM Class 1 Division 2 CSA UL |
| Odpornost na elektromagnetna polja | 10 V/m 80...1000 MHz conforming to IEC 801-3 |
| Odpornost na elektrostatično razelektritev | 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2 |
| Zaščitna obdelava | TC |
