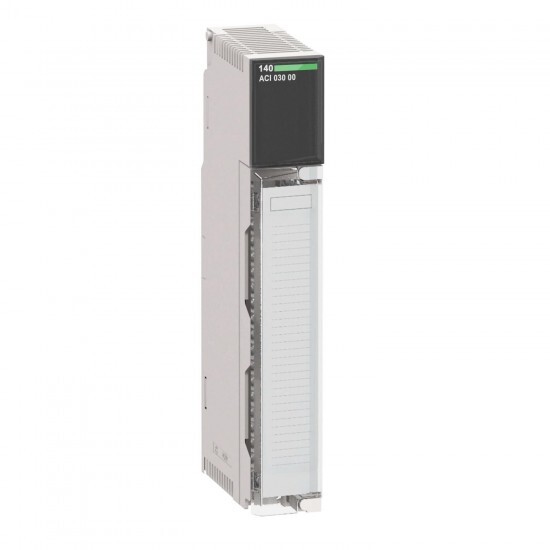

140ACI03000C Schneider
140ACI03000C Schneider
Opis
analog input module Modicon Quantum - 8 I multirange
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Modicon Quantum automation platform |
| Izdelek ali sestavni del | analogue input module |
| type of filter | single pole low pass - 3 dB at 15 Hz +/- 20 % |
| Komplementarno | |
| Teža izdelka | 0.3 kg |
| local signalling | 1 LED (green)bus communication is present (Active): 1 LED (red)external fault: 8 LEDs (green)channel is turned on: 8 LEDs (red)channel fault: |
| Označevanje | CE |
| analogue input number | 8 |
| linearity error | +/- 0.04 % |
| input type | differential |
| power dissipation in W | 2 W |
| module format | standard |
| update time | 5 ms |
| input impedance | 250 Ohm current +/- 0.01 % > 20 MOhm voltage |
| analogue input resolution | 12 bits |
| bus current requirement | 240 mA |
| addressing requirement | 9 input words |
| absolute maximum input | 50 V DC 25 mA |
| isolation between channels and bus | 1000 V DC 3000 V DC for 60 s |
| fault type | broken wire 4...20 mA undervoltage range 1...5 V |
| accuracy drift according to temperature | +/- 0.0025 % of full scale/°C <= 0.005 % of full scale/°C |
| isolation between channels | 30 V DC |
| absolute accuracy error | +/- 0.05 % of full scale +/- 0.1 % of full scale maximum |
| common mode rejection | > - 72 dB 60 Hz |
| linear measuring range | 1...5 V 4...20 mA |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 0-60 °C |
| Temperatura okoliškega zraka za skladiščenje | -40-85 °C |
| relative humidity | 95-95 % without condensation |
| Nadmorska višina delovanja | <= 5000 m |
| Certifikati izdelkov | FM Class 1 Division 2 cUL |
| Odpornost na elektromagnetna polja | 10 V/m 80-1000 MHz conforming to IEC 801-3 |
| Standardi | UL 508 CSA C22.2 No 142 |
| Odpornost na elektrostatično razelektritev | 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2 |
| Zaščitna obdelava | conformal coating Humiseal 1A33 |
