LX1FK380 Schneider Electric
LX1FK380 Schneider Electric
Opis

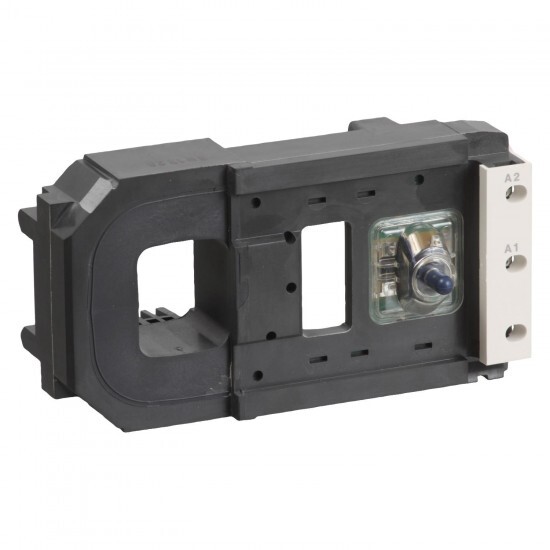

TeSys F - contactor coil - LX1FK - 380...400V AC 40...400 Hz
Tehnične lastnosti
| Glavno | |
| Serija izdelka | TeSys F |
| Izdelek ali sestavni del | contactor coil |
| Skupina izdelkov | TeSys |
| Kratko ime naprave | LX1FK |
| [Uc] Krmilna napetost | 380...400 V AC 40...400 Hz |
| Združljivost izdelkov | LC1F500 |
| average resistance | 112 Ohm inrush at 20 °C 2980 Ohm holding at 20 °C |
| Združljivost serije/obsega | TeSys F LC1F contactor |
| control circuit type | AC at 40...400 Hz |
| Maksimalna operativna stopnja | 2400 cyc/h 55 °C |
| Mehanska vzdržljivost | 10 Mcycles |
| Operativni čas | 100...170 ms opening 40...75 ms closing |
| inductance of closed circuit | 14.7 H |
| Komplementarno | |
| Omejitve napetosti regulacijskega vezja | operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C) drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C) |
| Inrush power in VA | 1100-1100 VA 40...400 Hz cos phi 0.9 (at 20 °C) |
| Tehnologija tuljave | without built-in suppressor module |
| Hold-in power consumption in VA | 18-18 VA 40...400 Hz cos phi 0.3 (at 20 °C) |
| heat dissipation | 18-18 W at 40...400 Hz |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -5-55 °C |
| net weight | 1.15 kg |
