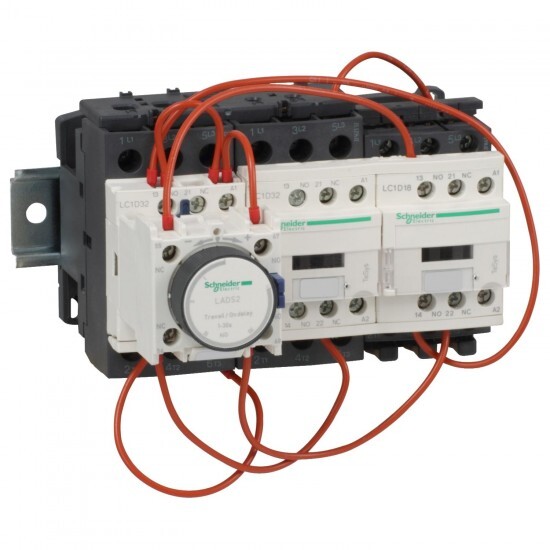

LC3D32AP7 Schneider Electric
LC3D32AP7 Schneider Electric
Opis
TeSys D - star delta starter - 3 x 3P (3 NO) - 32 A - 230 V AC coil
Tehnične lastnosti
| Glavno | |
| Serija izdelka | TeSys D |
| standards | EN 60947-4-1 IEC 60947-5-1 CSA C22.2 No 14 EN 60947-5-1 UL 508 IEC 60947-4-1 |
| Izdelek ali sestavni del | star delta starter |
| product name | TeSys D |
| utilisation category | AC-3 |
| Skupina izdelkov | TeSys |
| Opis polov | 3 x 3P |
| Kratko ime naprave | LC3D |
| [Ie] rated operational current | 32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit |
| Provided equipment | protective cover |
| [Uc] Krmilna napetost | 230 V AC 50/60 Hz |
| [Ue] rated operational voltage | power circuit: <= 690 V AC 25...400 Hz |
| product certifications | GOST RINA UL CSA BV DNV LROS (Lloyds register of shipping) CCC GL |
| motor power kW | 15 kW at 220/230 V AC 50/60 Hz 25 kW at 380/400 V AC 50/60 Hz 30 kW at 415 V AC 50/60 Hz 30 kW at 440 V AC 50/60 Hz |
| mounting support | plate |
| control circuit type | AC at 50/60 Hz |
| contactor application | motor control |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| pole contact composition | 3 x 3 NO |
| electrical durability | 1.65 Mcycles 32 A AC-3 at Ue <= 440 V |
| overvoltage category | III |
| [Ui] rated insulation voltage | power circuit: 690 V conforming to IEC 60947-4-1 power circuit: 600 V CSA certified power circuit: 600 V UL certified signalling circuit: 690 V conforming to IEC 60947-1 signalling circuit: 600 V CSA certified signalling circuit: 600 V UL certified |
| Predstavitev naprave | pre-wired |
| auxiliary contact composition | 1 NC for KM1 star contactor |
| interlocking type | mechanical |
| Komplementarno | |
| Višina | 124 mm |
| Teža izdelka | 2.03 kg |
| Povezave - terminali | control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible with cable end power circuit: screw clamp terminals 1 1.5-10 mm² - cable stiffness: solid without cable end power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: solid without cable end control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end power circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible without cable end power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible without cable end power circuit: screw clamp terminals 1 1-10 mm² - cable stiffness: flexible with cable end |
| mechanical durability | 15 Mcycles |
| Širina | 166 mm |
| Globina | 149 mm |
| tightening torque | control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver Philips No 2 |
| maximum operating rate | 30 cyc/h 60 °C |
| minimum switching current | 5 mA for signalling circuit |
| Omejitve napetosti regulacijskega vezja | drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C) operational: 0.8...1.1 Uc at 50 Hz (at <60 °C) operational: 0.85...1.1 Uc at 60 Hz (at <60 °C) |
| Inrush power in VA | 70-70 VA 60 Hz cos phi 0.75 (at 20 °C) 70-70 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Tehnologija tuljave | without built-in suppressor module |
| Hold-in power consumption in VA | 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C) 7-7 VA 50 Hz cos phi 0.3 (at 20 °C) |
| heat dissipation | 2-3 W at 50/60 Hz |
| power range | 15-25 kW at 380-440 V 3 phases 15-25 kW at 200-240 V 3 phases 30-50 kW at 380-440 V 3 phases |
| motor starter type | star delta starter |
| non-overlap time | 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact |
| signalling circuit frequency | 25...400 Hz |
| auxiliary contacts type | mechanically linked conforming to IEC 60947-5-1 3 x 1 NO + 1 NC mirror contact conforming to IEC 60947-4-1 3 x 1 NC |
| switching voltage | 17 V for signalling circuit |
| contactor coil voltage | 230 V AC standard |
| starting time | 30 s |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -40-70 °C at Uc |
| IP stopnja zaščite | IP20 front face conforming to IEC 60529 |
| Stopnja onesnaženosti | 3 |
| Temperatura okoliškega zraka za skladiščenje | -60-80 °C |
| Nadmorska višina delovanja | 3000 m without |
| Zaščitna obdelava | TH conforming to IEC 60068-2-30 |
| fire resistance | 850 °C conforming to IEC 60695-2-1 |
| flame retardance | V1 conforming to UL 94 |
| insulation resistance | > 10 MOhm for signalling circuit |
| mechanical robustness | vibrations contactor open: 2 Gn, 5...300 Hz vibrations contactor closed: 4 Gn, 5...300 Hz shocks contactor closed: 15 Gn for 11 ms shocks contactor open: 8 Gn for 11 ms |
