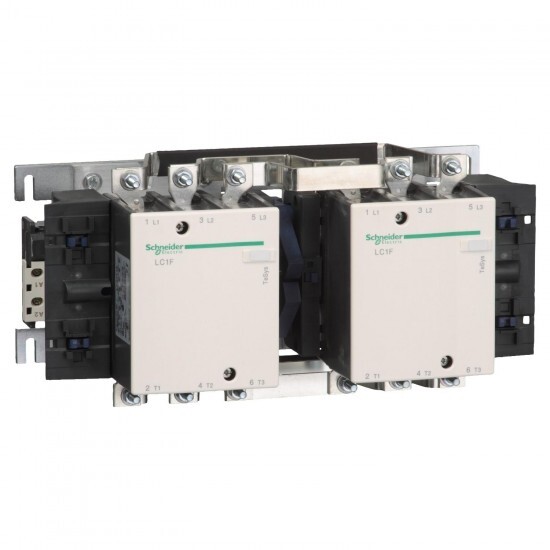

LC2F225 Schneider Electric
LC2F225 Schneider Electric
Opis
TeSys F reversing contactor - 3P(3 NO) AC-3
Tehnične lastnosti
| Glavno | |
| Serija izdelka | TeSys F |
| standards | IEC 60947-1 JIS C8201-4-1 IEC 60947-4-1 EN 60947-4-1 EN 60947-1 |
| Izdelek ali sestavni del | reversing contactor |
| product name | TeSys F |
| utilisation category | AC-1 AC-3 |
| Skupina izdelkov | TeSys |
| Opis polov | 3P |
| Kratko ime naprave | LC2F |
| [Ie] rated operational current | 315 A (at <40 °C) at <= 440 V AC AC-1 225 A (at <55 °C) at <= 440 V AC AC-3 |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz <= 460 V DC |
| product certifications | DNV LROS (Lloyds register of shipping) CSA UL ABS CB RMRoS CCC RINA |
| motor power kW | 100 kW at 1000 V AC 50/60 Hz 110 kW at 380...400 V AC 50/60 Hz 110 kW at 415 V AC 50/60 Hz 110 kW at 440 V AC 50/60 Hz 129 kW at 500 V AC 50/60 Hz 63 kW at 220...240 V AC 50/60 Hz 129 kW at 660...690 V AC 50/60 Hz |
| power dissipation per pole | 16 W AC-3 |
| average impedance | 0.32 mOhm - Ith 315 A 50 Hz |
| [Ith] conventional free air thermal current | 315 A (at 40 °C) |
| mounting support | plate |
| contactor application | motor control resistive load |
| rated breaking capacity | 1800 A conforming to IEC 60947-4-1 |
| Irms rated making capacity | 2250 A AC conforming to IEC 60947-4-1 |
| associated fuse rating | 315 A gG at <= 440 V 250 A aM at <= 440 V |
| [Uimp] rated impulse withstand voltage | 8 kV |
| connections - terminals | control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end control circuit: screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end control circuit: screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end power circuit: connector 1 cable(s) 240-240 mm² power circuit: lugs-ring terminals 1 cable(s) 240-240 mm² power circuit: bar 2 cable(s) - busbar cross section: 32 x 4 mm |
| pole contact composition | 3 NO |
| tightening torque | control circuit: 1.2 N.m power circuit: 35 N.m |
| overvoltage category | III |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 1500 V conforming to VDE 0110 group C |
| [Icw] rated short-time withstand current | 1800 A 40 °C - 10 s 1000 A 40 °C - 30 s 850 A 40 °C - 1 min 560 A 40 °C - 3 min 440 A 40 °C - 10 min |
| Predstavitev naprave | preassembled with reversing power busbar |
| auxiliary contact composition | 1 NO |
| interlocking type | mechanical |
| Komplementarno | |
| Kompatibilnostna koda | LC2F |
| power range | 55-100 kW at 200-240 V 3 phases 110-220 kW at 480-500 V 3 phases 110-220 kW at 380-440 V 3 phases |
| motor starter type | reversing contactor |
| contactor coil voltage | 24 V DC standard 220 V AC standard 230 V AC standard 240 V AC standard 400 V AC standard 48 V DC standard 110 V DC standard 125 V DC standard 220 V DC standard 48 V AC standard 110 V AC standard 115 V AC standard 120 V AC standard |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -5-55 °C |
| IP stopnja zaščite | IP20 front face with shrouds conforming to IEC 60529 IP20 front face with shrouds conforming to VDE 0106 |
| Temperatura okoliškega zraka za skladiščenje | -60-80 °C |
| Nadmorska višina delovanja | 3000 m without |
| Zaščitna obdelava | TH |
| fire resistance | 850 °C conforming to IEC 60695-2-1 |
| mechanical robustness | vibrations contactor open: 2 Gn, 5...300 Hz shocks contactor closed: 15 Gn for 11 ms vibrations contactor closed: 5 Gn, 5...300 Hz shocks contactor open: 7 Gn for 11 ms |
| Višina | 197 mm |
| net weight | 14.2 kg |
| Širina | 357 mm |
| Globina | 181 mm |
| Dovoljena temperatura okoliškega zraka okoli naprave | -40-70 °C |
