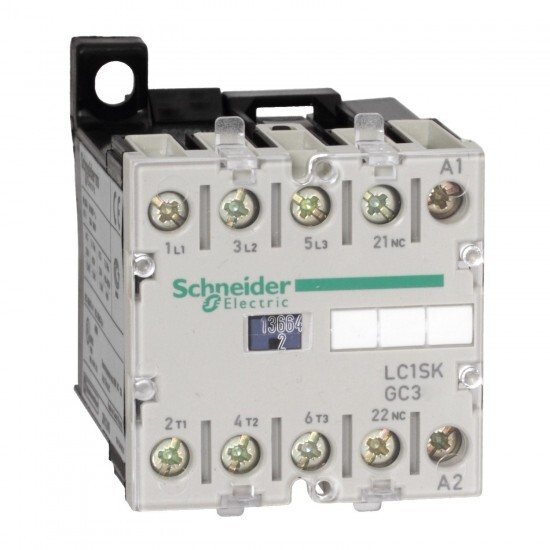

LC1SKGC301M7 Schneider
LC1SKGC301M7 Schneider
Opis
TeSys SK mini contactor - 3P (3 NO) - AC-3 - 690 V 9 A - 220 V AC coil
Tehnične lastnosti
| Glavno | |
| Serija izdelka | TeSys SK |
| standards | VDE 0660 BS 5424 NF C 63-110 IEC 60947 |
| Izdelek ali sestavni del | mini contactor |
| product name | TeSys SK |
| utilisation category | AC-3 AC-1 |
| Skupina izdelkov | TeSys |
| Opis polov | 3P |
| Kratko ime naprave | LC1SKGC |
| [Ie] rated operational current | 20 A (at <50 °C) AC AC-1 9 A at <= 400 V AC AC-3 |
| [Uc] Krmilna napetost | 220 V AC 50/60 Hz |
| [Ue] rated operational voltage | power circuit: 690 V AC 50/60 Hz signalling circuit: 690 V AC <= 400 Hz |
| product certifications | cULus |
| motor power kW | 4 kW at 380...415 V AC 50/60 Hz 4 kW at 660...690 V AC 50/60 Hz 1.1 kW at 220...230 V AC 50/60 Hz |
| average impedance | 4 mOhm - Ith 20 A 50 Hz for power circuit |
| [Ith] conventional free air thermal current | 20 A (at 55 °C) for power circuit 10 A (at 55 °C) for signalling circuit |
| mounting support | rail panel |
| control circuit type | AC at 50/60 Hz |
| contactor application | motor control resistive load |
| rated breaking capacity | 68 A at <= 400 V conforming to NF C 63-110 68 A at <= 400 V conforming to IEC 60947 |
| Irms rated making capacity | 85 A AC conforming to NF C 63-110 85 A AC conforming to IEC 60947 |
| associated fuse rating | 20 A gI at <= 440 V for power circuit 10 A gI for signalling circuit conforming to IEC 60947 10 A gI for signalling circuit conforming to VDE 0660 |
| connections - terminals | connector 1 cable(s) 1.5-6 mm²solid connector 2 cable(s) 1.5-4 mm²solid connector 1 cable(s) 0.5-6 mm²flexible without cable end connector 2 cable(s) 0.35-2.5 mm²flexible without cable end connector 1 cable(s) 0.35-6 mm²flexible with cable end connector 2 cable(s) 0.35-1.5 mm²flexible with cable end |
| pole contact composition | 3 NO |
| Maksimalna operativna stopnja | 1200 cyc/h |
| tightening torque | power circuit: 0.8 N.m - on connector - with screwdriver pozidriv No 1 |
| Mehanska vzdržljivost | 10 Mcycles |
| Operativni čas | 6...8 ms coil de-energisation and NO opening 7...14 ms coil energisation and NO closing 8...16 ms coil energisation and NC opening 8...10 ms coil de-energisation and NC closing |
| [Ui] rated insulation voltage | power circuit: 690 V conforming to BS 5424 power circuit: 690 V conforming to IEC 60947 power circuit: 690 V conforming to UL 508 power circuit: 690 V conforming to VDE 0110 group C power circuit: 690 V conforming to CSA C22.2 No 14 |
| [Icw] rated short-time withstand current | 60 A 55 °C for power circuit |
| auxiliary contact composition | 1 NC |
| Komplementarno | |
| Kompatibilnostna koda | LC1SKGC |
| Omejitve napetosti regulacijskega vezja | operational: 0.85...1.1 Uc at 50/60 Hz (at <55 °C) drop-out: 0.2...0.75 Uc at 50/60 Hz (at <55 °C) |
| Inrush power in VA | 23-23 VA 50/60 Hz (at 20 °C) |
| Hold-in power consumption in VA | 4.9-4.9 VA 50/60 Hz (at 20 °C) |
| heat dissipation | 1.5-1.5 W at 50/60 Hz |
| signalling circuit frequency | <= 400 Hz |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -20-50 °C |
| IP stopnja zaščite | IP2x conforming to VDE 0106 |
| Temperatura okoliškega zraka za skladiščenje | -50-70 °C |
| Nadmorska višina delovanja | 2000 m without |
| Zaščitna obdelava | TC conforming to IEC 60068 TC conforming to DIN 50015 |
| Višina | 58 mm |
| net weight | 0.175 kg |
| Širina | 45 mm |
| Globina | 56 mm |
