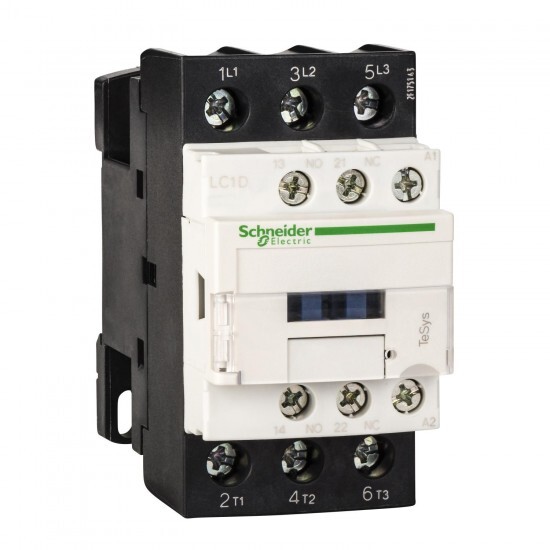

LC1D25M7 Schneider Electric
LC1D25M7 Schneider Electric
Opis
TeSys D contactor - 3P(3 NO) - AC-3 -
Tehnične lastnosti
| Glavno | |
| Serija izdelka | TeSys D |
| standards | CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 |
| Izdelek ali sestavni del | contactor |
| product name | TeSys D |
| utilisation category | AC-1 AC-3 AC-4 |
| Skupina izdelkov | TeSys |
| Opis polov | 3P |
| Kratko ime naprave | LC1D |
| [Ie] rated operational current | 25 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 40 A (at <60 °C) at <= 440 V AC AC-1 for power circuit |
| [Uc] Krmilna napetost | 220 V AC 50/60 Hz |
| [Ue] rated operational voltage | power circuit: <= 690 V AC 25...400 Hz power circuit: <= 300 V DC |
| product certifications | BV GL LROS (Lloyds register of shipping) GOST UL DNV CCC CSA RINA |
| motor power kW | 5.5 kW at 220...230 V AC 50/60 Hz (AC-3) 11 kW at 380...400 V AC 50/60 Hz (AC-3) 11 kW at 415...440 V AC 50/60 Hz (AC-3) 15 kW at 500 V AC 50/60 Hz (AC-3) 15 kW at 660...690 V AC 50/60 Hz (AC-3) 5.5 kW at 400 V AC 50/60 Hz (AC-4) |
| motor power hp | 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors 2 hp at 115 V AC 50/60 Hz for 1 phase motors 7.5 hp at 230/240 V AC 50/60 Hz for 3 phases motors 15 hp at 460/480 V AC 50/60 Hz for 3 phases motors 20 hp at 575/600 V AC 50/60 Hz for 3 phases motors 7.5 hp at 200/208 V AC 50/60 Hz for 3 phases motors |
| power dissipation per pole | 3.2 W AC-1 1.25 W AC-3 |
| average impedance | 2 mOhm - Ith 40 A 50 Hz for power circuit |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) for signalling circuit 40 A (at 60 °C) for power circuit |
| mounting support | plate rail |
| control circuit type | AC at 50/60 Hz |
| safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| contactor application | motor control resistive load |
| rated breaking capacity | 450 A at 440 V for power circuit conforming to IEC 60947 |
| Irms rated making capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 450 A at 440 V for power circuit conforming to IEC 60947 |
| associated fuse rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1 63 A gG at <= 690 V coordination type 1 for power circuit 40 A gG at <= 690 V coordination type 2 for power circuit |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| connections - terminals | control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end control circuit: screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end control circuit: screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end power circuit: screw clamp terminals 1 cable(s) 2.5-10 mm²flexible without cable end power circuit: screw clamp terminals 2 cable(s) 2.5-10 mm²flexible without cable end power circuit: screw clamp terminals 1 cable(s) 1-10 mm²flexible with cable end power circuit: screw clamp terminals 2 cable(s) 1.5-6 mm²flexible with cable end power circuit: screw clamp terminals 1 cable(s) 1.5-10 mm²solid without cable end power circuit: screw clamp terminals 2 cable(s) 2.5-10 mm²solid without cable end |
| pole contact composition | 3 NO |
| Maksimalna operativna stopnja | 3600 cyc/h 60 °C |
| tightening torque | control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver Philips No 2 |
| electrical durability | 1.65 Mcycles 25 A AC-3 at Ue <= 440 V 1.4 Mcycles 40 A AC-1 at Ue <= 440 V |
| Mehanska vzdržljivost | 15 Mcycles |
| Operativni čas | 12...22 ms closing 4...19 ms opening |
| overvoltage category | III |
| [Ui] rated insulation voltage | power circuit: 690 V conforming to IEC 60947-4-1 power circuit: 600 V CSA certified power circuit: 600 V UL certified signalling circuit: 690 V conforming to IEC 60947-1 signalling circuit: 600 V CSA certified signalling circuit: 600 V UL certified |
| [Icw] rated short-time withstand current | 240 A 40 °C - 10 s for power circuit 380 A 40 °C - 1 s for power circuit 50 A 40 °C - 10 min for power circuit 120 A 40 °C - 1 min for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit |
| protective cover | with |
| auxiliary contact composition | 1 NO + 1 NC |
| Komplementarno | |
| Kompatibilnostna koda | LC1D |
| insulation resistance | > 10 MOhm for signalling circuit |
| minimum switching current | 5 mA for signalling circuit |
| Omejitve napetosti regulacijskega vezja | drop-out: 0.3...0.6 Uc AC 50/60 Hz (at 60 °C) operational: 0.8...1.1 Uc AC 50 Hz (at 60 °C) operational: 0.85...1.1 Uc AC 60 Hz (at 60 °C) |
| contact compatibility | M2 |
| Inrush power in VA | 70-70 VA 60 Hz cos phi 0.75 (at 20 °C) 70-70 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Tehnologija tuljave | without built-in suppressor module |
| Hold-in power consumption in VA | 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C) 7-7 VA 50 Hz cos phi 0.3 (at 20 °C) |
| heat dissipation | 2-3 W at 50/60 Hz |
| power range | 4-6 kW at 200-240 V 3 phases 7-11 kW at 380-440 V 3 phases 7-11 kW at 480-500 V 3 phases |
| motor starter type | direct on-line contactor |
| non-overlap time | 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact |
| minimum switching voltage | 17 V for signalling circuit |
| signalling circuit frequency | 25...400 Hz |
| auxiliary contacts type | type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1 |
| contactor coil voltage | 220 V AC standard |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -5-60 °C |
| IP stopnja zaščite | IP20 front face conforming to IEC 60529 |
| Stopnja onesnaženosti | 3 |
| Temperatura okoliškega zraka za skladiščenje | -60-80 °C |
| Nadmorska višina delovanja | 3000 m without |
| Zaščitna obdelava | TH conforming to IEC 60068-2-30 |
| fire resistance | 850 °C conforming to IEC 60695-2-1 |
| flame retardance | V1 conforming to UL 94 |
| mechanical robustness | vibrations contactor open: 2 Gn, 5...300 Hz vibrations contactor closed: 4 Gn, 5...300 Hz shocks contactor closed: 15 Gn for 11 ms shocks contactor open: 8 Gn for 11 ms |
| Višina | 85 mm |
| net weight | 0.37 kg |
| Širina | 45 mm |
| Globina | 92 mm |
| Dovoljena temperatura okoliškega zraka okoli naprave | -40-70 °C at Uc |
