Opis

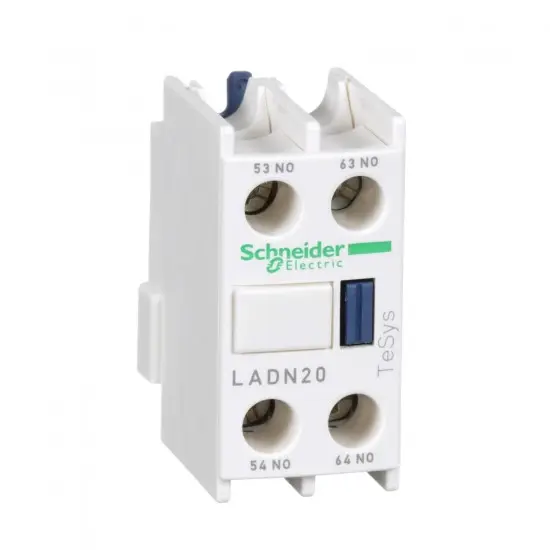

TeSys D - auxiliary contact block - 2 NO - screw-clamps terminals
Tehnične lastnosti
| Glavno | |
| Serija izdelka | TeSys D |
| Izdelek ali sestavni del | auxiliary contact block |
| Skupina izdelkov | TeSys |
| Kratko ime naprave | LADN |
| Združljivost serije/obsega | TeSys CAD TeSys LC1D TeSys LC1F TeSys CR1F |
| connections - terminals | screw clamp terminals 1 cable(s) 1-2.5 mm²flexible with cable end screw clamp terminals 1 cable(s) 1-2.5 mm²flexible without cable end screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end screw clamp terminals 2 cable(s) 1-2.5 mm²flexible without cable end screw clamp terminals 1 cable(s) 1-2.5 mm²solid screw clamp terminals 2 cable(s) 1-2.5 mm²solid |
| pole contact composition | 2 NO |
| Shielding continuity terminal | without |
| auxiliary contacts operation | instantaneous |
| Komplementarno | |
| [Ui] Nazivna izolacijska trdnost | 690 V conforming to IEC 60947-5-1 600 V - certifications CSA 600 V - certifications UL |
| mechanical durability | 30 Mcycles |
| tightening torque | 1.7 N.m |
| [Ue] rated operational voltage | 690 V AC 25...400 Hz |
| protection type | gG fuse 10 A |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) |
| mounting location | front |
| insulation resistance | > 10 MOhm |
| minimum switching current | 5 mA |
| non-overlap time | 1.5 ms on de-energisation no overlap between NC and NO contact 1.5 ms on energisation no overlap between NC and NO contact |
| minimum switching voltage | 17 V |
| Irms rated making capacity | 140 A AC conforming to IEC 60947-5-1 250 A DC conforming to IEC 60947-5-1 |
| permissible short-time rating | 100 A 60 °C 1 s 120 A 60 °C 500 ms 140 A 60 °C 100 ms |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -5-60 °C |
| IP stopnja zaščite | IP20 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -60-80 °C |
| Nadmorska višina delovanja | 3000 m |
| Certifikati izdelkov | IECEE CB Scheme UL CSA CCC EAC |
| Standardi | EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 |
| Zaščitna obdelava | TH conforming to IEC 60068 |
| environmental characteristic | normal environment |
| specific use | general |
