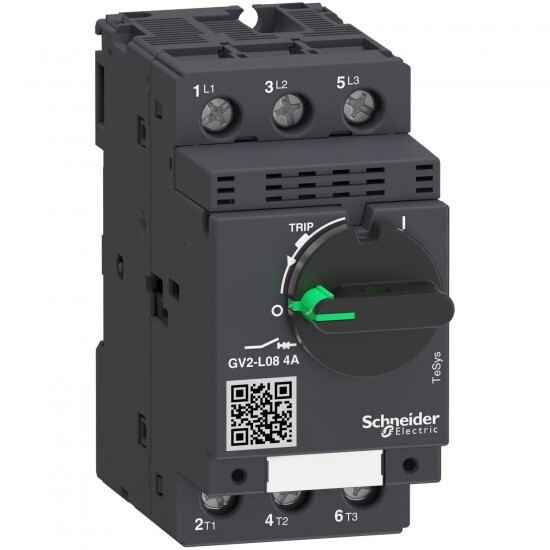

Motor circuit breaker, TeSys GV2, 3P, 4 A, magnetic, rotary handle, screw clamp terminals
Tehnične lastnosti
| Glavno | |
| Serija izdelka | TeSys GV2 |
| network type | AC |
| Izdelek ali sestavni del | circuit breaker |
| product name | TeSys GV2 |
| utilisation category | category A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 |
| Skupina izdelkov | TeSys |
| breaking capacity | 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 4 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Opis polov | 3P |
| Aplikacija naprave | motor |
| Kratko ime naprave | GV2L |
| trip unit technology | magnetic |
| network frequency | 50/60 Hz conforming to IEC 60947-2 |
| magnetic tripping current | 51-51 A |
| [Ics] rated service short-circuit breaking capacity | 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Komplementarno | |
| Višina | 89 mm |
| Teža izdelka | 0.33 kg |
| Povezave - terminali | screw clamp terminals 2 cable(s) 1-6 mm² solid screw clamp terminals 2 cable(s) 1.5-6 mm² flexible without cable end screw clamp terminals 2 cable(s) 1-4 mm² flexible with cable end |
| control type | rotary knob |
| [Ui] Nazivna izolacijska trdnost | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| electrical durability | 100000 cycles for AC-3 at 415 V |
| mechanical durability | 100000 cycles |
| Kompatibilnostna koda | GV2L |
| Širina | 45 mm |
| Globina | 97 mm |
| tightening torque | 1.7 N.m on screw clamp terminals |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [In] rated current | 4 A |
| operating position | any position |
| maximum operating rate | 40 cyc/h |
| Način pritrjevanja | 35 mm symmetrical DIN rail: clipped panel: screwed (with 2 x M4 screws) |
| power dissipation per pole | 1.8 W |
| rated duty | continuous conforming to IEC 60947-4-1 |
| motor power kW | 1.1-1.1 kW at 400/415 V AC 50/60 Hz 1.5-1.5 kW at 400/415 V AC 50/60 Hz 1.5-1.5 kW at 500 V AC 50/60 Hz 3-3 kW at 690 V AC 50/60 Hz |
| suitability for isolation | yes conforming to IEC 60947-1 |
| direct connector | without |
| mechanical robustness | shocks: 30 Gn conforming to IEC 60068-2-27 vibrations: 5 Gn, 5...150 Hz conforming to IEC 60068-2-6 |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -20-60 °C |
| IP stopnja zaščite | IP20 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-80 °C |
| Nadmorska višina delovanja | 0...2000 m |
| IK stopnja zaščite | IK04 |
| Certifikati izdelkov | IECEE CB Scheme UL CSA CCC EAC RINA LROS (Lloyds register of shipping) DNV-GL BV |
| Standardi | EN/IEC 60947-2 EN/IEC 60947-4-1 CSA C22.2 No 60947-4-1 UL 60947-4-1 |
| Zaščitna obdelava | TH |
| fire resistance | 960 °C conforming to IEC 60695-2-1 |
