ZC2JY12 Schneider Electric
ZC2JY12 Schneider Electric
Opis

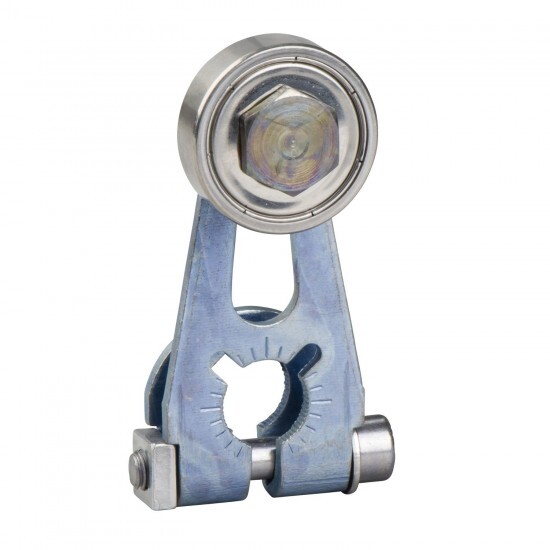

limit switch lever ZC2JY - steel ball bearing mount.roller lever - -40..120 °C
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XC |
| Izdelek ali sestavni del | limit switch lever |
| Kratko ime naprave | ZC2J |
| type of operator | roller lever spring return metal (ball bearing mounted) |
| Združljivost izdelkov | XC2J |
| movement of operating head | rotary |
| type of approach | lateral approach |
| series name | special format |
| associated head | ZC2JE06 ZC2JE05 ZC2JE07 ZC2JE04 ZC2JE03 ZC2JE01 ZC2JE02 |
| Komplementarno | |
| Kompatibilnostna koda | ZC2J |
| positive opening | without |
| switch actuation | by 30° cam |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C for standard environment -40-70 °C for low temperature 10-120 °C for high temperature |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C standard environment -40-70 °C low temperature 10-120 °C high temperature |
| environmental characteristic | low temperature standard environment high temperature |
