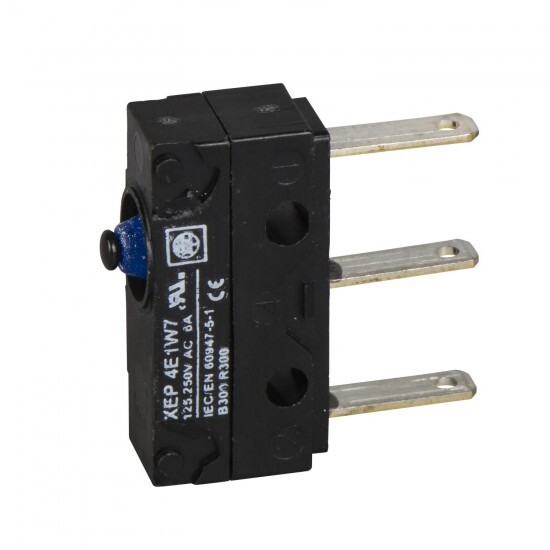

XEP4E1W7 Schneider Electric
XEP4E1W7 Schneider Electric
Opis
miniature limit switch - flat plunger - 2.8 mm cable clip tags
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XC |
| Izdelek ali sestavni del | microswitch |
| Kratko ime naprave | XEP4 |
| head type | plunger head |
| type of operator | plunger |
| contacts type and composition | 1 C/O standard |
| contact operation | snap action |
| movement of operating head | linear |
| type of approach | vertical approach |
| series name | special format |
| electrical connection | 2.8 mm cable clip tags |
| switch actuation | on end |
| contacts material | AgCdO |
| detector design | subminiature, DIN 41635 B format, sealed |
| Komplementarno | |
| Višina | 10 mm |
| Teža izdelka | 2.4 g |
| mechanical durability | 2000000 cycles |
| Kompatibilnostna koda | XEP4 |
| Širina | 6 mm |
| Globina | 20 mm |
| terminals description ISO n°1 | (1-2-4)OC |
| [Ith] conventional free air thermal current | 7.5 A at 250 V 50/60 Hz |
| body material | polyester |
| contact code designation | B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to EN/IEC 60947-5-1 appendix A R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN/IEC 60947-5-1 appendix A |
| maximum differential travel | 0.13 mm lever fixing position in A 0.13 mm lever fixing position in B |
| inter contact distance | 0.4 mm |
| minimum over travel | 0.6 mm lever fixing position in A 0.6 mm lever fixing position in B |
| minimum release force | 0.8 N lever fixing position in A 0.8 N lever fixing position in B |
| maximum permissible end of travel force | 10 N lever fixing position in A 10 N lever fixing position in B |
| tripping point | 8.4 mm lever fixing position in A 8.4 mm lever fixing position in B |
| maximum force for tripping | 2.5 N lever fixing position in A 2.5 N lever fixing position in B |
| tags material | tinned brass |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -40-125 °C |
| IP stopnja zaščite | IP67 |
| Standardi | EN 60947-5-1 IEC 60947-5-1 cURus UL 1054 EN 61058 |
| marking | CE |
