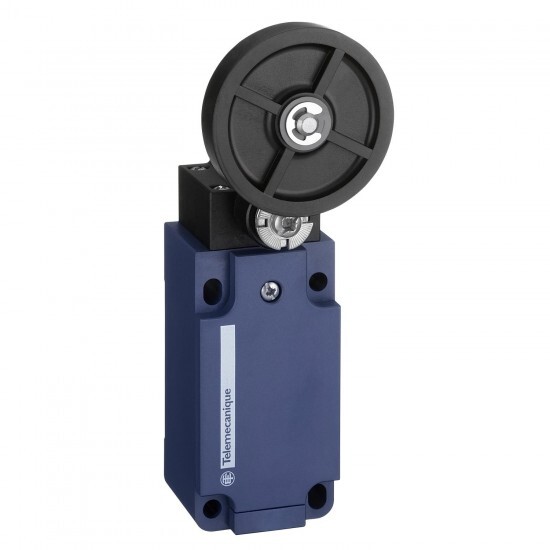

limit switch XCKS - elastomer roller lever Ø50 mm - 1NC+1NO - slow - M20
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XC |
| Izdelek ali sestavni del | limit switch |
| Kratko ime naprave | XCKS |
| head type | rotary head |
| type of operator | spring return roller lever elastomer roller diameter 50 mm |
| Material | plastic |
| contacts type and composition | 1 NC + 1 NO |
| contact operation | slow-break, break before make |
| movement of operating head | rotary |
| fixing mode | by the body |
| sensor design | - |
| cable entry | 1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm |
| head material | plastic |
| type of approach | lateral approach, 1 or 2 programmable direction |
| series name | standard format |
| body type | fixed |
| body material | plastic |
| number of poles | 2 |
| Komplementarno | |
| Višina | 144-144 mm |
| Teža izdelka | 0.175 kg |
| [Ui] Nazivna izolacijska trdnost | 300 V conforming to UL 508 500 V (pollution degree 3) conforming to IEC 60947-1 300 V conforming to CSA C22.2 No 14 |
| electrical durability | 5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, inductive load type, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, inductive load type, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| mechanical durability | 20000000 cycles |
| Kompatibilnostna koda | XCKS |
| Širina | 50 mm |
| Globina | 67 mm |
| terminals description ISO n°1 | (21-22)NC (13-14)NO |
| device presentation | complete product |
| short-circuit protection | 10 A cartridge fuse, type gG |
| positive opening | without |
| electrical connection | screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| number of steps | 1 |
| [Ithe] conventional enclosed thermal current | 10 A AC |
| switch actuation | by 30° cam |
| contacts insulation form | Zb |
| specific application | classic |
| maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| minimum actuation speed | 6 m/min |
| maximum actuation speed | 1.5 m/s |
| contact code designation | A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to EN/IEC 60947-5-1 appendix A Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A |
| minimum torque for tripping | 0.1 N.m |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP67 conforming to IEC 60529 IP66 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| overvoltage category | class II conforming to IEC 61140 class II conforming to NF C 20-030 |
| IK stopnja zaščite | IK05 conforming to EN 50102 |
| Certifikati izdelkov | CCC UL CSA |
| Standardi | IEC 60204-1 CENELEC EN 50041 CSA C22.2 No 14 EN 60204-1 EN 60947-5-1 IEC 60947-5-1 UL 508 |
| Odporno proti udarcu | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| electrical shock protection class | class II conforming to IEC 61140 class II conforming to NF C 20-030 |
| Zaščitna obdelava | TC |
