Opis

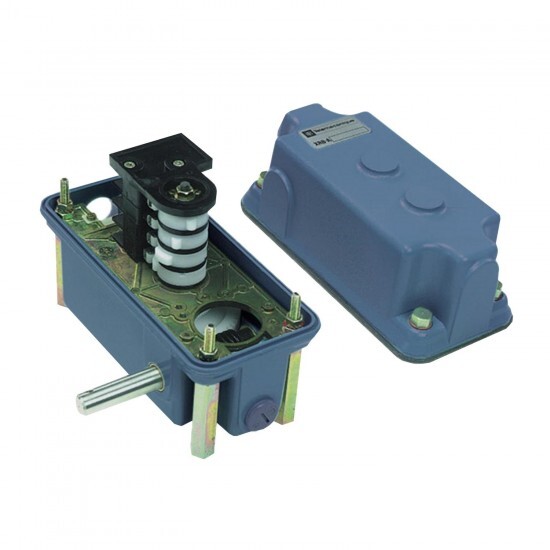

standard duty screw limit switch - bare drive shaft - 4 C/O - 60:1 - right-hand
Tehnične lastnosti
| Glavno | |
| Serija izdelka | XR and XF |
| Izdelek ali sestavni del | standard duty screw limit switch |
| Kratko ime naprave | XRBA |
| type of operator | bare drive shaft |
| [Ie] rated operational current | A300, AC-15, Ue = 240 V, Ie = 3 A conforming to EN/IEC 60947-5-1 Q300, DC-13, Ue = 250 V, Ie = 0.27 A conforming to EN/IEC 60947-5-1 |
| Material | aluminium alloy: body housing aluminium alloy: cover stainless steel: input drive shaft |
| Združljivost izdelkov | XRBZ922 |
| contact operation | snap action |
| operating position | right-hand side |
| number of poles | 1 |
| product specific application | position control of moving parts of hoisting or materials handling equipment liquid level control in pumping systems |
| maximum revolution speed | 1000 rpm of input drive shaft |
| Komplementarno | |
| Teža izdelka | 1.5 kg |
| Povezave - terminali | captive screw clamp terminals, 2 x 1.5 mm² with cable end |
| [Ui] Nazivna izolacijska trdnost | 250 V conforming to EN/IEC 60947-1 |
| electrical durability | 500000 cycles AC-15 50/60 Hz inductive at 12 V, 65 VA, operating rate <3600 cyc/h, load factor 0.5 EN/IEC 60947-5-1 500000 cycles AC-15 50/60 Hz resistive at 48 V, 700 VA, operating rate <3600 cyc/h, load factor 0.5 EN/IEC 60947-5-1 500000 cycles DC-13 inductive at 110 V, 130 W, operating rate <3600 cyc/h, load factor 0.5 EN/IEC 60947-5-1 500000 cycles DC-13 inductive at 12 V, 55 W, operating rate <3600 cyc/h, load factor 0.5 EN/IEC 60947-5-1 500000 cycles DC-13 inductive at 220 V, 135 W, operating rate <3600 cyc/h, load factor 0.5 EN/IEC 60947-5-1 500000 cycles DC-13 inductive at 24 V, 84 W, operating rate <3600 cyc/h, load factor 0.5 EN/IEC 60947-5-1 500000 cycles DC-13 inductive at 48 V, 110 W, operating rate <3600 cyc/h, load factor 0.5 EN/IEC 60947-5-1 500000 cycles DC-13 resistive at 110 V, 65 W, operating rate <3600 cyc/h, load factor 0.5 EN/IEC 60947-5-1 500000 cycles DC-13 resistive at 12 V, 27 W, operating rate <3600 cyc/h, load factor 0.5 EN/IEC 60947-5-1 500000 cycles DC-13 resistive at 220 V, 67 W, operating rate <3600 cyc/h, load factor 0.5 EN/IEC 60947-5-1 500000 cycles DC-13 resistive at 24 V, 39 W, operating rate <3600 cyc/h, load factor 0.5 EN/IEC 60947-5-1 500000 cycles AC-15 50/60 Hz inductive at 127 V, 450 VA, operating rate <3600 cyc/h, load factor 0.5 EN/IEC 60947-5-1 500000 cycles DC-13 resistive at 48 V, 50 W, operating rate <3600 cyc/h, load factor 0.5 EN/IEC 60947-5-1 500000 cycles AC-15 50/60 Hz inductive at 220 V, 530 VA, operating rate <3600 cyc/h, load factor 0.5 EN/IEC 60947-5-1 500000 cycles AC-15 50/60 Hz inductive at 24 V, 108 VA, operating rate <3600 cyc/h, load factor 0.5 EN/IEC 60947-5-1 500000 cycles AC-15 50/60 Hz inductive at 48 V, 216 VA, operating rate <3600 cyc/h, load factor 0.5 EN/IEC 60947-5-1 500000 cycles AC-15 50/60 Hz resistive at 12 V, 18 VA, operating rate <3600 cyc/h, load factor 0.5 EN/IEC 60947-5-1 500000 cycles AC-15 50/60 Hz resistive at 127 V, 165 VA, operating rate <3600 cyc/h, load factor 0.5 EN/IEC 60947-5-1 500000 cycles AC-15 50/60 Hz resistive at 220 V, 220 VA, operating rate <3600 cyc/h, load factor 0.5 EN/IEC 60947-5-1 500000 cycles AC-15 50/60 Hz resistive at 24 V, 35 VA, operating rate <3600 cyc/h, load factor 0.5 EN/IEC 60947-5-1 |
| mechanical durability | 15000000 cycles |
| Kompatibilnostna koda | XRBA |
| cable entry | 1 entry tapped for Pg 16 cable gland, clamping capacity: 10-14 mm 1 entry tapped for Pg 9 cable gland, clamping capacity: 5-8 mm |
| short-circuit protection | 10 A cartridge fuse type gG |
| contacts type and composition | 4 C/O |
| [Ithe] conventional enclosed thermal current | 10 A |
| maximum resistance across terminals | 25 MOhm |
| reduction ratio | 60:1 |
| adaptation for potentiometer | with, ratio 2 (1.933) |
| operating torque | 5 N.m at 20 °C |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP55 conforming to EN/IEC 60529 IP557 conforming to NF C 20-010 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| Standardi | EN/IEC 60947-5-1 |
| Odporno proti udarcu | 80 gn for 11 ms |
| Odpornost proti vibracijam | > 5 gn (f= 10-60 Hz) |
| Zaščitna obdelava | TC |
