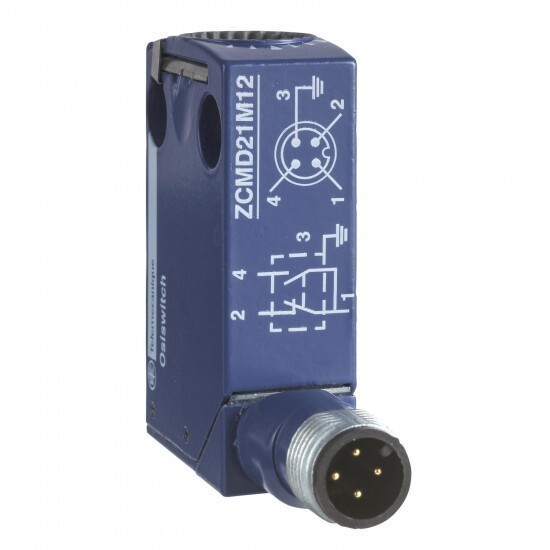

ZCMD21C12 Schneider Electric

limit switch body ZCMD - 1NC+1NO - silver - snap action - connection - M12

Glavno
Serija izdelka	OsiSense XC
Izdelek ali sestavni del	limit switch body
Kratko ime naprave	ZCMD
contacts type and composition	1 NC + 1 NO
contact operation	snap action
series name	standard format
body type	fixed
body material	zamak
number of poles	2
design	miniature
associated head	ZCE66 ZCEF2 ZCE14 ZCE62 ZCE06 ZCE09 ZCE21 ZCE28 ZCE27 ZCE64 ZCE65 ZCEG1 ZCE10 ZCE11 ZCE01 ZCE29 ZCE67 ZCE24 ZCE07 ZCE13 ZCE02 ZCE63 ZCEF0 ZCE08
Komplementarno
Višina	50-50 mm
Teža izdelka	0.065 kg
[Ui] Nazivna izolacijska trdnost	60 V (pollution degree 3) conforming to IEC 60947-5-1
electrical durability	5000000 cycles, DC-13 24 V, 3 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13 48 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Kompatibilnostna koda	ZCMD
Širina	30 mm
Globina	16 mm
device presentation	basic element
product compatibility	XCMD
contacts material	silver plated contacts
short-circuit protection	4 A cartridge fuse, type gG
positive opening	with
[Ie] rated operational current	0.22 A at 50 V, DC-13 conforming to EN/IEC 60947-5-1 appendix A 3 A at 50 V, AC-15 conforming to EN/IEC 60947-5-1 appendix A
electrical connection	male connector M12, 5 pins
[Ithe] conventional enclosed thermal current	4 A
contacts insulation form	Zb
maximum resistance across terminals	25 mOhm conforming to IEC 60255-7 category 3
minimum actuation speed	0.01 m/min
Okolje
Temperatura okoliškega zraka za skladiščenje	-40-70 °C
