Opis

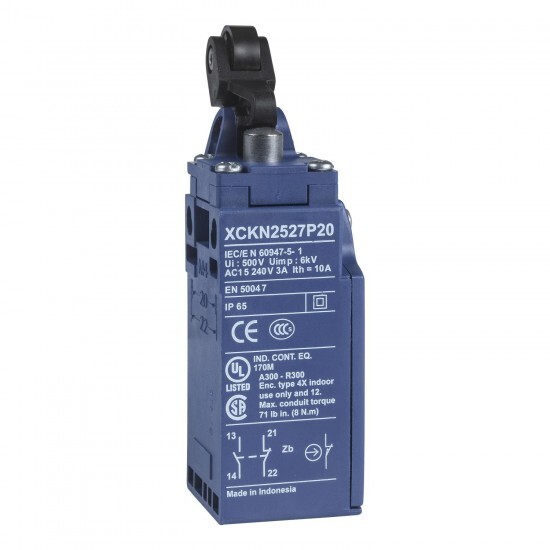

limit switch XCKN - th.plastic roller lever plung. Ver - 1NC+1NO - snap - M20
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XC |
| Izdelek ali sestavni del | limit switch |
| Kratko ime naprave | XCKN |
| head type | plunger head |
| type of operator | spring return roller lever plunger thermoplastic |
| Material | plastic |
| contacts type and composition | 1 NC + 1 NO |
| contact operation | snap action |
| movement of operating head | linear |
| fixing mode | by the body |
| sensor design | compact |
| cable entry | 1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm |
| head material | plastic |
| type of approach | vertical approach, 1 direction |
| series name | standard format |
| body type | fixed |
| body material | plastic |
| number of poles | 2 |
| Komplementarno | |
| Višina | 96-96 mm |
| Teža izdelka | 0.145 kg |
| [Ui] Nazivna izolacijska trdnost | 300 V conforming to UL 508 500 V (pollution degree 3) conforming to IEC 60947-1 300 V conforming to CSA C22.2 No 14 |
| electrical durability | 5000000 cycles, DC-13, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| mechanical durability | 10000000 cycles |
| Kompatibilnostna koda | XCKN |
| Širina | 42.5 mm |
| Globina | 30 mm |
| terminals description ISO n°1 | (13-14)NO (21-22)NC |
| device presentation | complete product |
| short-circuit protection | 10 A cartridge fuse, type gG |
| positive opening | with |
| electrical connection | screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| switch actuation | by 30° cam |
| contacts insulation form | Zb |
| specific application | compact basic |
| maximum actuation speed | 1 m/s |
| contact code designation | A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to EN/IEC 60947-5-1 appendix A |
| positive opening minimum force | 10 N |
| minimum force for tripping | 6 N |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP65 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| overvoltage category | class II conforming to IEC 61140 class II conforming to NF C 20-030 |
| IK stopnja zaščite | IK04 conforming to EN 50102 |
| Certifikati izdelkov | CSA UL CCC |
| Standardi | IEC 60204-1 IEC 60947-5-1 EN 60947-5-1 UL 508 CSA C22.2 No 14 EN 60204-1 |
| Odporno proti udarcu | 45 gn for 11 ms conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Zaščitna obdelava | TC |
