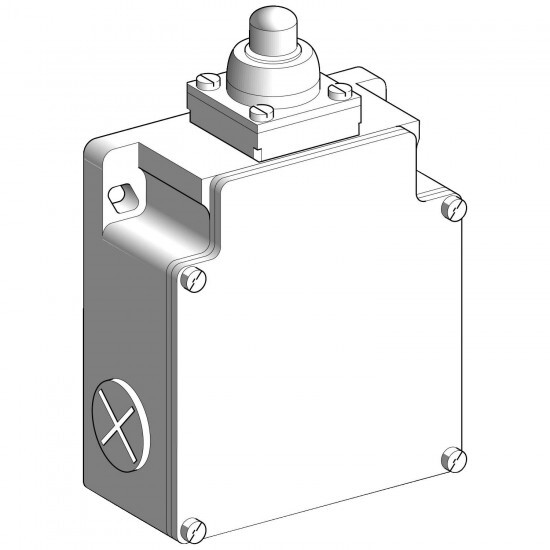

limit switch XCKML - metal end plunger - 2x(1NC+1NO) - slow-break - M20
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense XC |
| Izdelek ali sestavni del | limit switch |
| Kratko ime naprave | XCKML |
| head type | plunger head |
| type of operator | spring return plunger metal |
| Material | metal |
| contacts type and composition | 2 x (1 NC + 1 NO) |
| contact operation | slow-break, break before make |
| movement of operating head | linear |
| fixing mode | by the body |
| cable entry | 3 entries tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm |
| type of approach | vertical approach, 1 direction |
| series name | standard format |
| body type | fixed |
| body material | zamak |
| number of poles | 4 |
| Komplementarno | |
| Višina | 81-81 mm |
| Teža izdelka | 0.4 kg |
| [Ui] Nazivna izolacijska trdnost | 300 V conforming to UL 508 500 V (pollution degree 3) conforming to IEC 60947-1 300 V conforming to CSA C22.2 No 14 |
| electrical durability | 5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, inductive load type, 24 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, inductive load type, 48 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| mechanical durability | 3000000 cycles |
| Kompatibilnostna koda | XCKML |
| Širina | 77 mm |
| Globina | 36 mm |
| terminals description ISO n°1 | (21-22)NC (13-14)NO |
| device presentation | complete product |
| positive opening | with |
| electrical connection | screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| number of steps | 1 |
| [Ithe] conventional enclosed thermal current | 10 A AC |
| switch actuation | on end |
| contacts insulation form | Zb |
| specific application | classic |
| repeat accuracy | 0.1 mm on the tripping points with 1 million operating cycles |
| maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| minimum actuation speed | 6 m/min |
| maximum actuation speed | 0.5 m/s |
| positive opening minimum force | 60 N |
| minimum force for tripping | 15 N |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP66 conforming to EN/IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| IK stopnja zaščite | IK05 conforming to EN 50102 |
| Certifikati izdelkov | CSA UL |
| Standardi | UL 508 EN 60947-5-1 EN 60204-1 IEC 60947-5-1 IEC 60204-1 CSA C22.2 No 14 |
| Odporno proti udarcu | 50 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| Odpornost proti vibracijam | 25 gn (f= 10-500 Hz) conforming to EN/IEC 60068-2-6 |
| electrical shock protection class | class I conforming to IEC 61140 class I conforming to NF C 20-030 |
| Zaščitna obdelava | TC |
