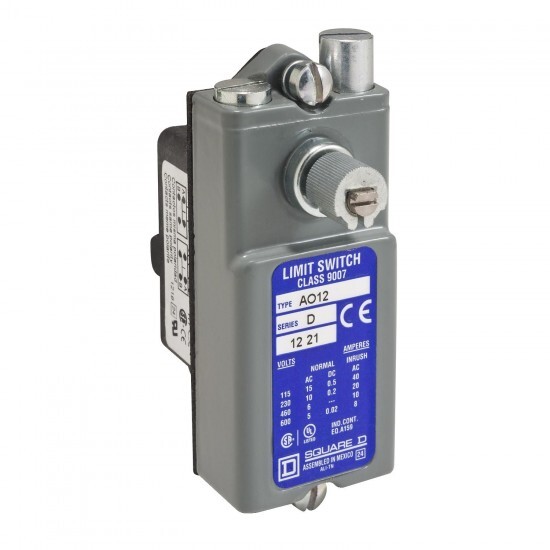

LIMIT SWITCH 600VAC 15AMP AO +OPTIONS
Tehnične lastnosti
| Glavno | |
| Serija izdelka | 9007 |
| Izdelek ali sestavni del | limit switch |
| Kratko ime naprave | 9007AW |
| series name | heavy duty |
| body type | fixed |
| product specific application | precision |
| Komplementarno | |
| Višina | 3.47-3.47 in |
| Teža izdelka | 0.1 lb(US) |
| [Ui] Nazivna izolacijska trdnost | 600 V (pollution degree 3) conforming to UL 508 for contact block 600 V conforming to CSA C22.2 No 14 for contact block |
| mounting mode | open type |
| Kompatibilnostna koda | 9007AW |
| Širina | 2.28 in |
| Globina | 1.38 in |
| Material | metal |
| terminals description ISO n°1 | (3-4)NO (1-2)NC |
| contacts material | silver contacts |
| positive opening | without |
| contacts type and composition | NC-NO, switch function: SPDT-DB |
| contact operation | snap action |
| [Ie] rated operational current | 5 A at 600 V AC, A600 conforming to NEMA rating designation 6 A at 480 V AC, A600 conforming to NEMA rating designation 10 A at 240 V AC, A600 conforming to NEMA rating designation 15 A at 120 V AC, A600 conforming to NEMA rating designation 0.1 A at 250 V DC 0.25 A at 125 V DC |
| electrical connection | 1-2 cables for screw-clamp terminals (AWG 22...AWG 12) |
| number of steps | 1 |
| [Ithe] conventional enclosed thermal current | 15 A |
| switch actuation | from left convertible to right CCW convertible to CW |
| repeat accuracy | +/- 0.002 in linear travel of cam on 1.38 in long lever arm |
| maximum displacement angle | 30 ° |
| maximum actuation speed | 130 ft/min with 30° cam angle, levers only 90 ft/min with 45° cam angle, levers only |
| body material | cast zinc |
| minimum torque for tripping | 2.75 lbf.in |
| Način pritrjevanja | by the body |
| number of poles | 1 |
| tripping angle | 5 ° |
| operator profile | rotary head |
| type of operator | spring return without operating lever cast zinc |
| contact form | Form Z |
| type of approach | lateral approach, 1 direction programmable |
| movement of operating head | rotary |
| operator material | cast zinc |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 0-185 °F |
| IP stopnja zaščite | IP20 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | 0-185 °F |
| NEMA degree of protection | NEMA 1 conforming to Nema type 250 |
| Zaščitna obdelava | epoxy powder coat |
