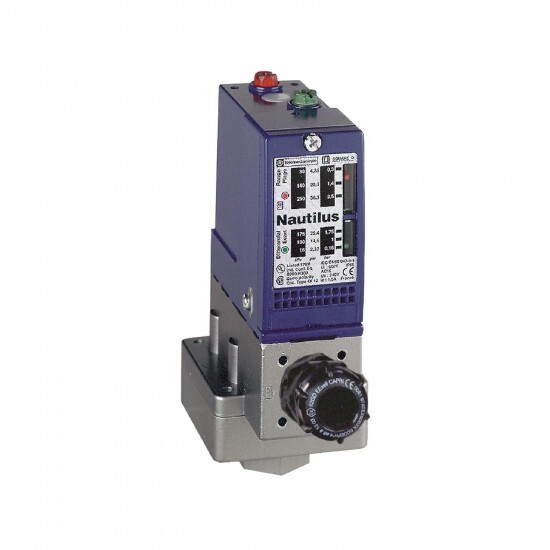

XMLB004A2S12EX Schneider Electric

pressure switch XMLB - 4 bar - adjustable scale 2 thresholds - 1 C/O

Glavno
Serija izdelka	OsiSense ATEX D
product specific application	ATEX D
pressure sensor type	electromechanical pressure sensor
pressure actuator	diaphragm
pressure switch type of operation	regulation between 2 thresholds
materials in contact with fluid	zinc alloy nitrile
local display	with
fluid connection type	G 1/4 (female) conforming to ISO 228
pressure sensor size	4 bar
controlled fluid	air (0-70 °C) hydraulic oil (0-70 °C) water (0-70 °C)
scale type	adjustable differential
electrical circuit type	control circuit
enclosure material	zinc alloy
maximum permissible accidental pressure	9 bar
destruction pressure	18 bar
pressure sensor name	XMLB
adjustable range of switching point on falling pressure	0.05-3.75 bar
adjustable range of switching point on rising pressure	0.25-4 bar
possible differential maximum at high setting	2.4 bar
Komplementarno
Višina	158 mm
mechanical durability	8000000 cycles
Širina	55 mm
Globina	77.5 mm
terminals description ISO n°1	(13-14-11-12)OF
contacts material	silver contacts
repeat accuracy	2 %
terminal block type	4 terminals
maximum permissible pressure - per cycle	5 bar
setting	external
cable entry number	1 tapped entry for M20 x 1.5 cable gland (included)
auxiliary contacts operation	snap action
Okolje
Temperatura okoliškega zraka za delovanje	-20-60 °C
Certifikati izdelkov	INERIS 04ATEX0058 IEC-Ex INE 17.0019
Standardi	EN/IEC 60079-0 EN/IEC 60079-31
Zaščitna obdelava	TC
operating position	any position
directives	2014/34/EU - ATEX directive
marking	II2 D-Ex tb IIIC T85°C Db IP66
