ABE9C1241M Schneider Electric
ABE9C1241M Schneider Electric
Opis

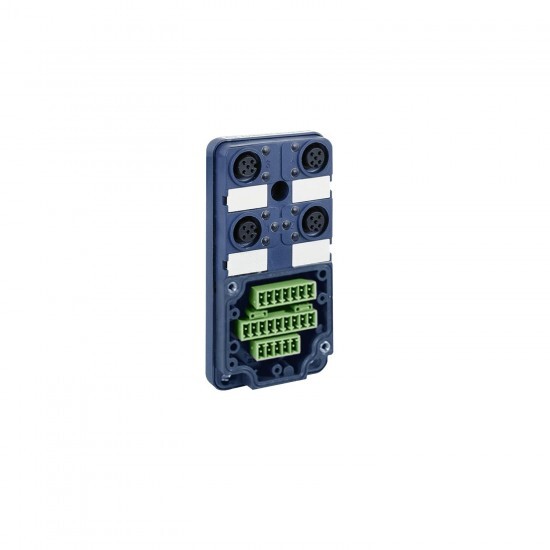

IP67 passive splitter box - with 4 channels M12 connector - Led
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Advantys ABE9 |
| Izdelek ali sestavni del | IP67 passive splitter box |
| electrical connection | 1 male plug-in connector 4 female connectors M12 5 pins |
| number of channels | 4 |
| status LED | 1 LED per channel (yellow)channel status: 2 LEDs (green)power ON: |
| Komplementarno | |
| Teža izdelka | 0.06 kg |
| [Ue] rated operational voltage | 24 V DC |
| operating position | any position |
| Način pritrjevanja | M4 screw fixing |
| number of ways | 8 ways |
| current per channel | 4 A |
| contact resistance | 5000 µOhm |
| current of common | 16 A 1-1 mm² 12 A 0.75-0.75 mm² |
| separation of commons | without or with |
| insulation group | category 3 conforming to VDE 0110 |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -20-80 °C |
| IP stopnja zaščite | IP67 conforming to IEC 529 |
| Temperatura okoliškega zraka za skladiščenje | -40-85 °C |
| Certifikati izdelkov | cULus |
| Odporno proti udarcu | 30 gn for 11 ms conforming to EN 68-2-2 30 gn for 11 ms conforming to IEC 68-2-2 |
| Odpornost proti vibracijam | 0.2 gn (f= 57-150 Hz) conforming to IEC 68-2-6, FC tests |
