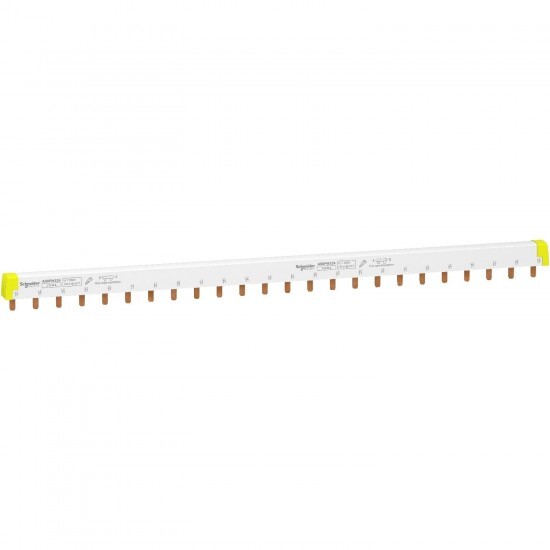

A9XPH324 Schneider Electric
A9XPH324 Schneider Electric
Opis
Acti 9 - comb busbar - 3L - 18 mm pitch - 24 modules - 100A
Tehnične lastnosti
| Glavno | |
| Izdelek ali sestavni del | comb busbar |
| Skupina izdelkov | Acti 9 |
| Kategorija dodatkov/ločenih delov | connection accessory |
| total number of 18 mm modules | 24 |
| lines description | 3L |
| Komplementarno | |
| 9 mm pitches | 48 |
| [Ui] Nazivna izolacijska trdnost | 500 V AC conforming to IEC 61439-2 |
| mounting mode | horizontal |
| colour | white (RAL 9003) |
| Širina | 430 mm |
| [Ue] rated operational voltage | 415 V AC |
| device presentation | cuttable |
| [Ie] rated operational current | 100 A at 40 °C |
| connection pitch | 18 mm |
| mounting location | top or bottom on tunnel type terminals top or bottom on double terminal |
| Označevanje | L1 L2 L3 |
| range compatibility | Acti 9 iC60 Acti 9 iK60 Acti 9 iID Acti 9 iID K Acti 9 iSW Acti 9 iSW-NA Multi 9 C60 |
| insulation | insulated |
| connector type | tooth |
| number of ways | 8 ways 3 L |
| distance between way | 54 mm |
| poles configuration for 1 way | 1 x 3P |
| Okolje | |
| IP stopnja zaščite | IP20 with end-pieces and tooth covers |
| Stopnja onesnaženosti | 3 conforming to IEC 60947-7-1 |
| Standardi | IEC 60947-7-1 IEC 61439-2 |
| fire resistance | 960 °C ( 30 s ) conforming to IEC 60695-2-1 |
