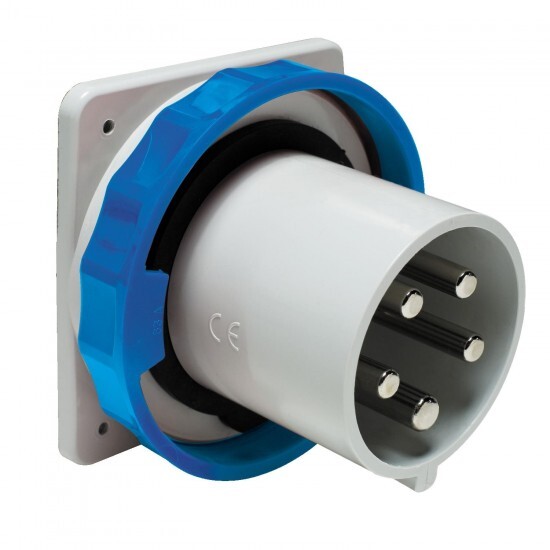

81892 Schneider
81892 Schneider
Opis
PratiKa plug - straight - 125A - 3P + N + E - 200...250 V AC - IP67 - panel
Tehnične lastnosti
| Glavno | |
| network type | AC |
| Izdelek ali sestavni del | plug |
| product name | PratiKa plug |
| Skupina izdelkov | PratiKa |
| Opis polov | 3P + N + E |
| Kratko ime naprave | panel mounted plugs |
| outlet standard | industrial |
| plug, socket category | low voltage |
| Komplementarno | |
| network frequency | 50/60 Hz |
| Višina | 325 mm |
| Teža izdelka | 1.5 kg |
| Povezave - terminali | captive screws |
| mounting mode | panel-mounted |
| Kompatibilnostna koda | panel mounted plugs |
| colour | grey (RAL 7035) |
| Širina | 131 mm |
| Globina | 131 mm |
| [Ue] rated operational voltage | 200...250 V |
| thread type | Pg 48 |
| cable cross section | 16-70 mm² |
| contacts material | pins: nickel plated brass |
| plug, socket, control station shape | straight |
| [In] rated current | 125 A |
| base dimension | 110 x 114 mm |
| ground lug clockwise position | 9 h |
| plug, socket material | housing: self-extinguishing polymer |
| voltage colour | blue |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 35-35 °C ( 86400 s ) -25-40 °C |
| IP stopnja zaščite | IP67 conforming to IEC 60529 |
| relative humidity | 50-50 % at 40-40 °C 70-70 % at 30-30 °C 90-90 % at 20-20 °C |
| Nadmorska višina delovanja | 2000 m |
| IK stopnja zaščite | IK08 conforming to EN 62262 |
| Standardi | IEC 60309-1 IEC 60309-2 |
| fire resistance | 850 °C conforming to IEC 60695-2-11 |
