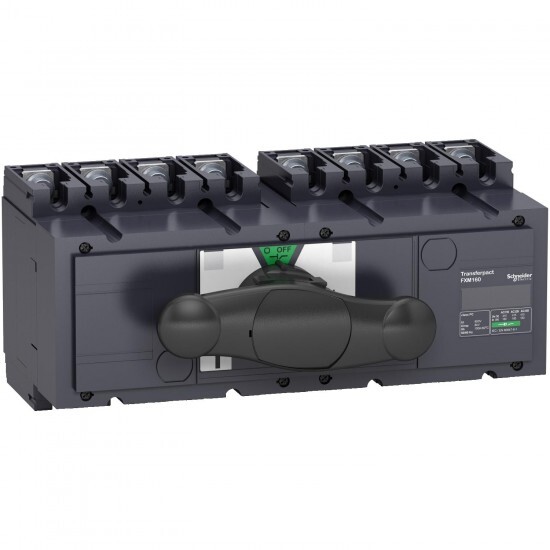

complete manual source changeover assembly, FXM160, Compact INS250-160 switch disconnectors, 160 A, 4 poles
Tehnične lastnosti
| Glavno | |
| Serija izdelka | INS250 |
| network type | DC AC |
| Izdelek ali sestavni del | changeover switch |
| Skupina izdelkov | Compact |
| suitability for isolation | yes |
| Opis polov | 4P |
| Aplikacija naprave | change source of supply |
| Kratko ime naprave | INS250 |
| network frequency | 50/60 Hz |
| Združljivost serije/obsega | Compact INS INS250 switch disconnector |
| mounting mode | fixed |
| [Icm] rated short-circuit making capacity | 30 kA switch-disconnector alone 690 V AC at 50/60 Hz 330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz |
| contact position indicator | yes |
| downside connection | front |
| upside connection | front |
| Komplementarno | |
| Višina | 136 mm |
| mounting support | plate rail |
| Teža izdelka | 6.4 kg |
| control type | direct front rotary handle |
| [Ui] Nazivna izolacijska trdnost | 750 V AC 50/60 Hz |
| electrical durability | AC-22A: 1500 cycles 440 V AC 50/60 Hz DC-23A: 1500 cycles 250 V DC 4 poles in series AC-22A: 1500 cycles 500 V AC 50/60 Hz AC-22A: 1500 cycles 690 V AC 50/60 Hz AC-23A: 1500 cycles 440 V AC 50/60 Hz AC-23A: 1500 cycles 500 V AC 50/60 Hz AC-23A: 1500 cycles 690 V AC 50/60 Hz DC-22A: 1500 cycles 125 V DC 2 poles in series DC-23A: 1500 cycles 125 V DC 2 poles in series DC-22A: 1500 cycles 250 V DC 4 poles in series |
| mechanical durability | 15000 cycles |
| Kompatibilnostna koda | ONE_PIECE_CHANGEOVER_INS250 |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Širina | 295 mm |
| Globina | 131 mm |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-3 750 V AC 50/60 Hz conforming to IEC 60947-3 750 V DC conforming to IEC 60947-3 250 V DC conforming to IEC 60947-3 |
| [Ith] conventional free air thermal current | 160 A at 60 °C |
| [Ie] rated operational current | AC-22A: 160 A AC 50/60 Hz 220/240 V AC-23A: 160 A AC 50/60 Hz 480 V NEMA AC-23A: 160 A AC 50/60 Hz 500/525 V AC-23A: 160 A AC 50/60 Hz 660/690 V DC-22A: 160 A DC 125 V 2 poles in series DC-23A: 160 A DC 125 V 2 poles in series DC-22A: 160 A DC 250 V 4 poles in series DC-23A: 160 A DC 250 V 4 poles in series AC-22A: 160 A AC 50/60 Hz 380/415 V AC-22A: 160 A AC 50/60 Hz 440/480 V AC-22A: 160 A AC 50/60 Hz 480 V NEMA AC-22A: 160 A AC 50/60 Hz 500/525 V AC-22A: 160 A AC 50/60 Hz 660/690 V AC-23A: 160 A AC 50/60 Hz 220/240 V AC-23A: 160 A AC 50/60 Hz 380/415 V AC-23A: 160 A AC 50/60 Hz 440/480 V |
| locking options description | padlocking in OFF position |
| [Icw] rated short-time withstand current | 1.8 kA during 30 s conforming to IEC 60947-3 2.2 kA during 20 s conforming to IEC 60947-3 4.9 kA during 3 s conforming to IEC 60947-3 8.5 kA during 1 s conforming to IEC 60947-3 |
| connection pitch | 45 mm |
| rated duty | uninterrupted |
| mechanical interlocking | with mechanical interlocking |
| intermittent duty class | class 120 - 60 % |
| number of contact position | 3 |
| transfer switch class | PC |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP40 conforming to IEC 60947-3 |
| Stopnja onesnaženosti | 3 |
| Temperatura okoliškega zraka za skladiščenje | -50-85 °C |
| Certifikati izdelkov | CCC KEMA-KEUR |
| Standardi | IEC 60947-1 IEC 60947-3 |
| electrical shock protection class | class II |
