Opis

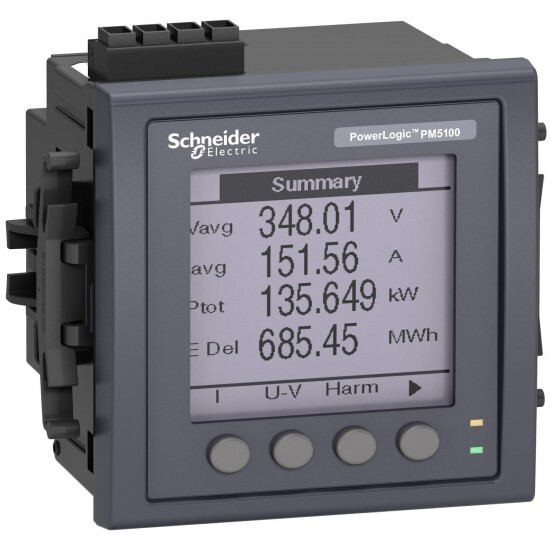

PM5100 Meter, without communication, up to 15th H, 1DO 33 alarms
Tehnične lastnosti
| Glavno | |
| Izdelek ali sestavni del | power meter |
| product name | PowerLogic PM5000 |
| Skupina izdelkov | PowerLogic |
| Kratko ime naprave | PM5100 |
| market segment | buildings small building cost management: billing: main incomer buildings small building cost management: billing: sub feeder buildings medium building cost management: billing: main incomer buildings medium building cost management: billing: sub feeder buildings large building cost management: billing: main incomer buildings large building cost management: billing: sub feeder buildings multi-site cost management: billing: main incomer buildings multi-site cost management: billing: sub feeder datacenter cost management: billing: main incomer datacenter cost management: billing: sub feeder healthcare cost management: billing: main incomer healthcare cost management: billing: sub feeder industry cost management: billing: main incomer industry cost management: billing: sub feeder buildings small building cost management: cost allocation: main incomer buildings small building cost management: cost allocation: sub feeder buildings medium building cost management: cost allocation: main incomer buildings medium building cost management: cost allocation: sub feeder buildings large building cost management: cost allocation: main incomer buildings large building cost management: cost allocation: sub feeder buildings multi-site cost management: cost allocation: main incomer buildings multi-site cost management: cost allocation: sub feeder datacenter cost management: cost allocation: main incomer datacenter cost management: cost allocation: sub feeder healthcare cost management: cost allocation: main incomer healthcare cost management: cost allocation: sub feeder industry cost management: cost allocation: main incomer industry cost management: cost allocation: sub feeder buildings small building network management: main incomer buildings small building network management: sub feeder buildings medium building network management: main incomer buildings medium building network management: sub feeder buildings large building network management: sub feeder buildings multi-site network management: sub feeder datacenter network management: sub feeder healthcare network management: sub feeder industry network management: sub feeder |
| Komplementarno | |
| network frequency | 60 Hz 50 Hz |
| Višina | 96 mm |
| mounting support | framework |
| Teža izdelka | 380 g |
| Povezave - terminali | voltage circuit: screw terminal block4 control circuit: screw terminal block2 current transformer: screw terminal block6 input/output circuit: screw terminal block6 RS485 link: screw terminal block4 |
| mounting mode | flush-mounted |
| Širina | 96 mm |
| Globina | 72 mm |
| product certifications | CE conforming to IEC 61010-1 cULus conforming to UL 61010-1 |
| standards | EN 50470-1 IEC 62053-22 UL 61010-1 IEC 62053-24 IEC 61557-12 EN 50470-3 IEC 60529 |
| [Us] rated supply voltage | 100...415 V AC 45...65 Hz 125...250 V DC |
| [In] rated current | 5 A 1 A |
| number of outputs | 1 digital |
| number of inputs | 0 |
| poles description | 3P + N 1P + N 3P |
| measurement accuracy | active energy +/- 0.5 % reactive energy +/- 2 % active power +/- 0.5 % apparent power +/- 0.5 % frequency +/- 0.05 % power factor +/- 0.005 % current +/- 0.5 % voltage +/- 0.5 % |
| display type | backlit LCD |
| communication port protocol | - |
| analogue input type | voltage (impedance 5 MOhm) current (impedance 0.3 MOhm) |
| device application | power monitoring |
| type of measurement | current voltage frequency power factor energy active and reactive power |
| communication port support | - |
| measurement voltage | 35-690 V AC 45...65 Hz between phases 20-400 V AC 45...65 Hz between phase and neutral |
| sampling rate | 64 samples/cycle |
| maximum power consumption in VA | 10 VA at 415 V |
| measurement current | 10-9000 mA |
| frequency measurement range | 45-65 Hz |
| data recording | min/max of instantaneous values time stamping |
| accuracy class | class 0.5S active energy conforming to IEC 62053-22 |
| display resolution | 128 x 128 pixels |
| power quality analysis | up to the 15th harmonic |
| ride-through time | 80 ms 120 V AC typical 100 ms 230 V AC typical 100 ms 415 V AC typical |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP52 front: conforming to IEC 60529 IP30 body: conforming to IEC 60529 |
| Stopnja onesnaženosti | 2 |
| Temperatura okoliškega zraka za skladiščenje | -40-85 °C |
| relative humidity | 5-95 % at 50-50 °C |
| Nadmorska višina delovanja | 3000 m |
| Elektromagnetna kompatibilnost | limits for harmonic current emissions class A conforming to IEC 61000-3-2 electrostatic discharge level 4 conforming to IEC 61000-4-2 conducted RF disturbances level 3 conforming to IEC 61000-4-6 magnetic field at power frequency level 4 conforming to IEC 61000-4-8 conducted and radiated emissions class B conforming to EN 55022 |
| compatibility code | PM5100 |
