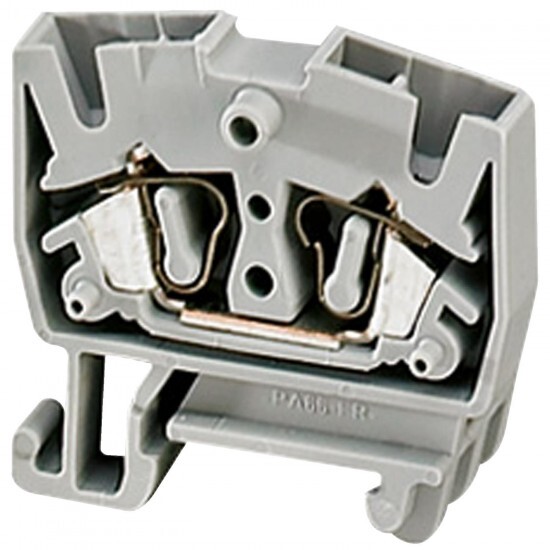

NSYTRR22MBL Schneider Electric
NSYTRR22MBL Schneider Electric
Opis
SPRING TERMINAL, MINI 15MM RAIL, FEED THROUGH, 2 POINTS, 2,5MM², BLUE
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Linergy |
| Izdelek ali sestavni del | mini terminal block |
| product name | Linergy TR |
| Skupina izdelkov | Linergy |
| Kratko ime naprave | TRR |
| Kategorija dodatkov/ločenih delov | connection accessory |
| length | 32 mm |
| colour | blue |
| Količina na set/komplet | set of 50 |
| mounting mode | clip-on |
| terminal block type | passthrough |
| terminal block level | 1 |
| nominal cross section | 2.5 mm² |
| Komplementarno | |
| Višina | 30 mm |
| Teža izdelka | 4.1 g |
| Povezave - terminali | 1 x spring terminal: upstream 1 x spring terminal: downstream |
| wire stripping length | 8 mm |
| Kompatibilnostna koda | terminal block |
| Širina | 5.2 mm |
| [Ue] rated operational voltage | 800 V conforming to EN/IEC 60947-7-1 690 V conforming to ATEX Exe II Ex II 2 GD 600 V cURus |
| Material | polyamide 6/6: insulating case copper alloy: connector and screw copper alloy: commoning link chromium-nickel steel: spring |
| product compatibility | Spacial enclosures |
| cable cross section | 0.08-2.5 mm², flexible without cable end 0.08-4 mm², solid with cable end 0.2-2.5 mm², flexible with cable end 0.08-4 mm², solid without cable end |
| [In] rated current | 20-20 A cURus 24-24 A conforming to EN/IEC 60947-7-1 22-22 A conforming to ATEX Exe II Ex II 2 GD |
| range compatibility | Prisma G Prisma P Prisma PH Prisma Pack Spacial Kaedra Pragma TeSys |
| number of terminals | 2 |
| number of measurement input | 0 |
| connection position | top |
| flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| dielectric loss | 0.01 at 1 MHz conforming to IEC 60250 0.01 at 1 MHz conforming to VDE 0303-T4 |
| tool type | connection: flat screwdriver disconnection: flat screwdriver |
| resistivity | 10000 MΩ.m conforming to IEC 60093 10000 MΩ.m conforming to VDE 0303-T30 |
| dielectric constant | 3.7 at 1 MHz |
| surface resistance | 1000 GΩ conforming to IEC 60093 1000 GΩ conforming to VDE 0303-T30 |
| creep resistance | 500 CTI (> 400 kB) conforming to IEC 60093 500 CTI (> 400 kB) conforming to VDE 0303-T30 |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -40-130 °C conforming to IEC 60216-1 -40-130 °C conforming to VDE 0304-T21 |
| Certifikati izdelkov | ATEX cURus CSA IEC-Ex EAC |
| dielectric strength | 1000 V conforming to IEC 60243-1 |
