Opis

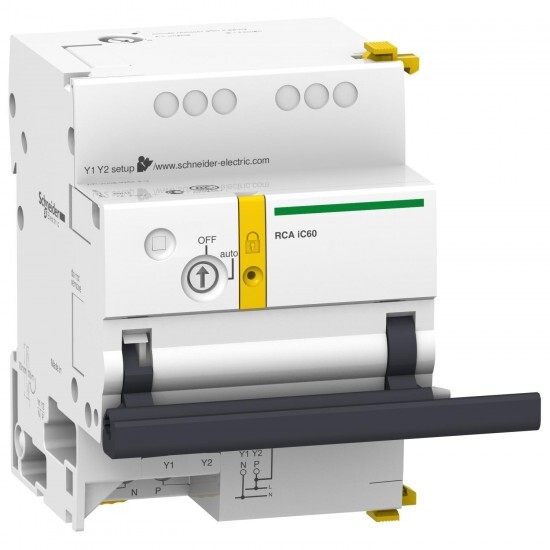

Acti 9 - RCA remote ctrl aux for iC60 1P-1PN-2P
Tehnične lastnosti
| Glavno | |
| Serija izdelka | iC60 |
| Izdelek ali sestavni del | remote control auxiliary |
| Skupina izdelkov | Acti 9 |
| Kratko ime naprave | RCA iC60 |
| signalling circuit voltage | volt-free contact 24...230 V 0.01…1 A AC |
| signal contacts composition | 1 OF volt-free contacts |
| Komplementarno | |
| Višina | 93 mm |
| mounting support | DIN rail |
| 9 mm pitches | 7 |
| comb busbar and distribution block compatibility | NO |
| Teža izdelka | 400 g |
| Povezave - terminali | power supply: tunnel type terminals 1 cable(s) 0.5-10 mm² rigid without cable end input: tunnel type terminals 1 cable(s) 0.5-10 mm² rigid without cable end output: tunnel type terminals 2 cable(s) 0.5-1.5 mm² rigid without cable end output: tunnel type terminals 1 cable(s) 0.5-2.5 mm² rigid without cable end power supply: tunnel type terminals 1 cable(s) 0.5-6 mm² flexible without cable end input: tunnel type terminals 1 cable(s) 0.5-6 mm² flexible without cable end output: tunnel type terminals 2 cable(s) 0.5-1.5 mm² flexible without cable end output: tunnel type terminals 1 cable(s) 0.5-2.5 mm² flexible without cable end power supply: tunnel type terminals 1 cable(s) 0.5-4 mm² flexible with cable end input: tunnel type terminals 1 cable(s) 0.5-4 mm² flexible with cable end output: tunnel type terminals 2 cable(s) 0.5-1.5 mm² flexible with cable end output: tunnel type terminals 1 cable(s) 0.5-1.5 mm² flexible with cable end power supply: tunnel type terminals 2 cable(s) 0.5-2.5 mm² rigid without cable end input: tunnel type terminals 2 cable(s) 0.5-2.5 mm² rigid without cable end power supply: tunnel type terminals 2 cable(s) 0.5-2.5 mm² flexible without cable end input: tunnel type terminals 2 cable(s) 0.5-2.5 mm² flexible without cable end power supply: tunnel type terminals 2 cable(s) 0.5-2.5 mm² flexible with cable end input: tunnel type terminals 2 cable(s) 0.5-2.5 mm² flexible with cable end |
| wire stripping length | power supply: 10 mm for bottom connection input: 10 mm for bottom connection output: 8 mm for top connection |
| control type | remote control impulse and maintained 230 V AC 50/60 Hz |
| [Ui] Nazivna izolacijska trdnost | 400 V |
| mounting mode | fixed |
| electrical durability | 10000 cycles |
| mechanical durability | 10000 cycles |
| Kompatibilnostna koda | RCA iC60 |
| local signalling | flashing green LED: ready to operate flashing orange LED: not operational |
| [Uimp] rated impulse withstand voltage | 6 kV |
| colour | white |
| Širina | 63 mm |
| Globina | 75.5 mm |
| tightening torque | power supply: 1-1 N.m input: 1-1 N.m auxiliary output: 0.7-0.7 N.m |
| [Us] rated supply voltage | 230 V AC 50/60 Hz |
| product compatibility | 1P + N iC60 2P iC60 1P iC60 1P iC65 2P iC65 iMDU |
| locking options description | padlocking in OFF position |
| provision for padlocking | padlockable |
| input current | 5 mA impulse 5 mA maintained |
| range compatibility | Acti 9 iC60 Acti 9 iC65 iMDU voltage adaptor |
| power consumption in W | 1 W |
| market segment | residential small commercial |
| response time | < 500 ms |
| impulse duration | >= 200 ms control circuit |
| value of setting | mode A: reclosing authorized after tripping mode B: reclosing inhibited after tripping auto: remote control authorized off: remote control inhibited |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-60 °C |
| tropicalisation | 2 |
| IP stopnja zaščite | IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
| Stopnja onesnaženosti | 3 conforming to IEC 60947 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| relative humidity | 93-93 % at 40-40 °C |
| overvoltage category | II |
