PKB63U515 Schneider
PKB63U515 Schneider
Opis

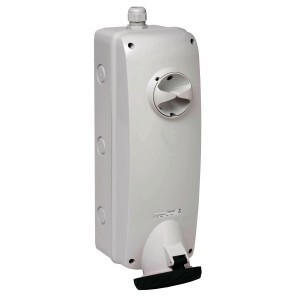

Unika interlocked socket - 63 A - 3P + N + E - 100...130 V AC - IP65 - panel
Tehnične lastnosti
| Glavno | |
| Serija izdelka | PratiKa |
| network type | AC |
| Izdelek ali sestavni del | interlocked socket |
| product name | Unika socket |
| Skupina izdelkov | PratiKa |
| Opis polov | 3P + N + E |
| Kratko ime naprave | Unika socket |
| outlet standard | industrial |
| plug, socket category | low voltage |
| Komplementarno | |
| network frequency | 50/60 Hz |
| Višina | 430 mm |
| Teža izdelka | 3 kg |
| Povezave - terminali | captive screws |
| mounting mode | panel-mounted |
| Kompatibilnostna koda | Unika socket |
| colour | grey (RAL 7035) |
| Širina | 140 mm |
| Globina | 116 mm |
| [Ue] rated operational voltage | 100...130 V |
| product compatibility | modular device |
| contacts material | pins: stainless steel screws: stainless steel |
| [In] rated current | 63 A |
| base dimension | 140 x 430 mm |
| ground lug clockwise position | 4 h |
| plug, socket material | housing: self-extinguishing polymer |
| voltage colour | yellow |
| maximum cable outer diameter | 25 mm |
| maximum cable cross section | 35 mm² |
| protection type | without protection |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 35-35 °C ( 86400 s ) -25-40 °C |
| IP stopnja zaščite | IP65 conforming to IEC 60529 |
| relative humidity | 50-50 % at 40-40 °C 70-70 % at 30-30 °C 90-90 % at 20-20 °C |
| IK stopnja zaščite | IK09 conforming to EN 62262 |
| Standardi | IEC 60309-2 IEC 60309-1 |
| fire resistance | 750 °C conforming to IEC 60695-2-11 |
