83459 Schneider Electric
83459 Schneider Electric
Opis

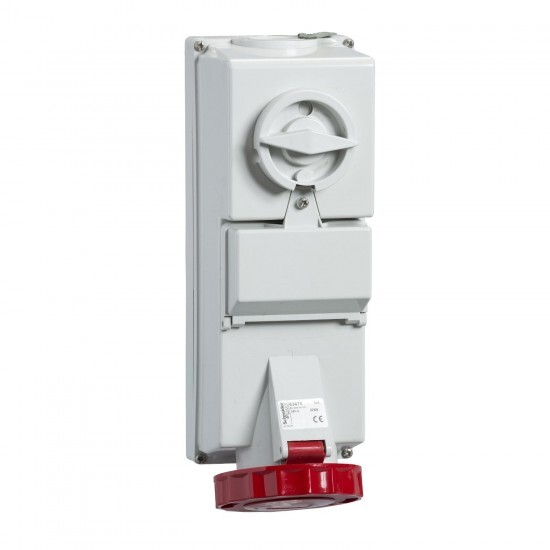

Isoblock interlocked socket - 16 A - 3P + N + E - 380...415 V AC - IP65 - wall
Tehnične lastnosti
| Glavno | |
| Serija izdelka | PratiKa |
| network type | AC |
| Izdelek ali sestavni del | interlocked socket |
| product name | Isoblock socket |
| Skupina izdelkov | PratiKa |
| Opis polov | 3P + N + E |
| Kratko ime naprave | Isoblock socket |
| outlet standard | industrial |
| plug, socket category | low voltage |
| industrial socket type | B16 |
| Komplementarno | |
| network frequency | 50/60 Hz |
| Višina | 318 mm |
| Teža izdelka | 1.164 kg |
| Povezave - terminali | captive screws |
| mounting mode | wall-mounted |
| Kompatibilnostna koda | Isoblock socket |
| colour | grey (RAL 7035) |
| Širina | 106 mm |
| Globina | 147 mm |
| [Ue] rated operational voltage | 380...415 V |
| thread type | Pg 21 |
| contacts material | pins: stainless steel springs: stainless steel |
| [In] rated current | 16 A |
| base dimension | 106 x 318 mm |
| ground lug clockwise position | 6 h |
| plug, socket material | housing: self-extinguishing engineering polymer |
| voltage colour | red |
| maximum cable outer diameter | 25 mm |
| fuse size | 10.3 x 38 mm |
| maximum cable cross section | 10 mm² |
| fuse type | cylindrical |
| cable entry | cable gland |
| protection type | fuse |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | 35-35 °C ( 86400 s ) -25-40 °C |
| IP stopnja zaščite | IP65 conforming to IEC 60529 |
| relative humidity | 50-50 % at 40-40 °C 70-70 % at 30-30 °C 90-90 % at 20-20 °C |
| IK stopnja zaščite | IK10 conforming to EN 62262 |
| Standardi | IEC 60309-1 IEC 60309-2 |
| fire resistance | 850 °C conforming to IEC 60695-2-11 |
