PRA20113 Schneider Electric
PRA20113 Schneider Electric
Opis

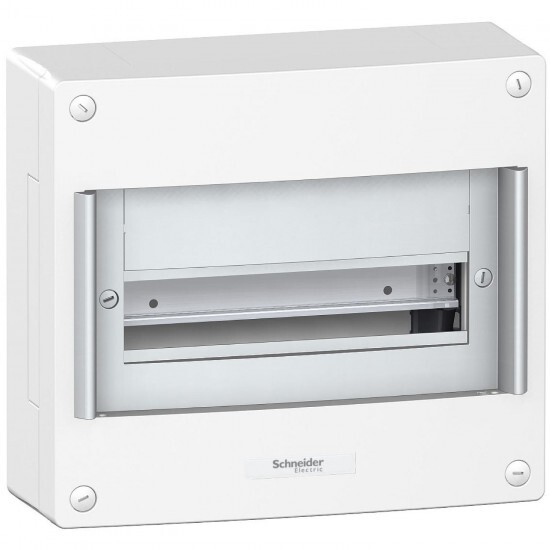

Pragma surface enclosure - IP30 - 1 x 13 modules - without door
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Pragma |
| Izdelek ali sestavni del | enclosure |
| Skupina izdelkov | Pragma |
| Provided equipment | 2 x terminal block 1 x identification label 1 x marking kit 1 x blanking plate strip |
| number of horizontal rows | 1 |
| enclosure type | distribution enclosure |
| type of front cover | without |
| depth | 123 mm |
| number of 18 mm modules per row | 13 |
| width | 336 mm |
| height | 300 mm |
| electrical insulation class | class II double insulation |
| Komplementarno | |
| 9 mm pitches | 26 |
| [Ui] Nazivna izolacijska trdnost | 400 V |
| colour | enclosure: white (RAL 9016) front face: grey (RAL 7004) |
| [In] rated current | 63 A |
| cable entry | cable or tube removable plates trunking cut-out plates |
| enclosure material | back part: technoplastic front face: technoplastic |
| number of terminal blocks | 1 earth (Quick) with 14 outgoers 1 neutral (Quick) with 14 outgoers |
| embedding depth | 0 mm |
| total number of 18 mm modules | 13 |
| internal depth | 95 mm |
| type of rail | DIN |
| enclosure mounting | surface |
| distribution block outgoers | 3 x 25 mm² for earth 11 x 4 mm² for earth 3 x 25 mm² for neutral 11 x 4 mm² for neutral |
| mounting plate description | without mounting plate |
| power dissipation in W | 22 W |
| targeted country | Baltic Czech republic Greece Finland Sweden Russia Hungary |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-60 °C |
| IP stopnja zaščite | IP30 without door IP40 with door |
| overvoltage category | II |
| IK stopnja zaščite | IK08 without door IK09 with door |
| Standardi | IEC 60670-1 IEC 60670-24 IEC 61439-1 IEC 61439-3 |
| fire resistance | back part: 650 °C front face: 650 °C |
| environmental characteristic | halogen free |
