03157 Schneider
03157 Schneider
Opis

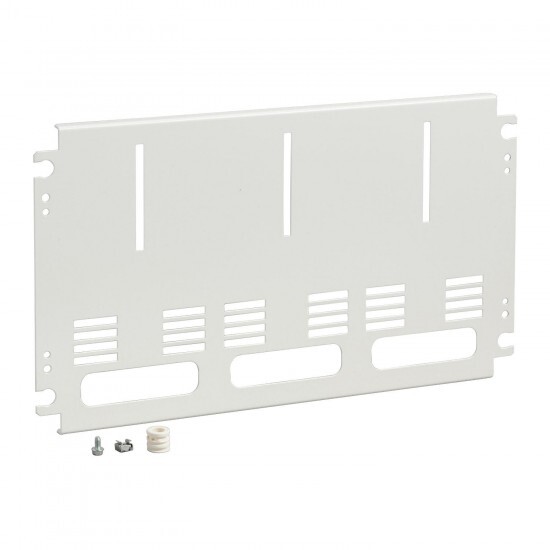

MOUNTING PLATE FOR 3 1P-METERS W600 5M
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Prisma G Prisma P |
| Izdelek ali sestavni del | mounting plate |
| Skupina izdelkov | Prisma |
| Opis polov | 3 x 2P: kilowatt-hour meters vertical installation |
| Kategorija dodatkov/ločenih delov | installation accessory |
| Združljivost serije/obsega | Prisma G Prisma P Pack 160 |
| installed device | power meters: kilowatt-hour meters - vertical installation |
| Komplementarno | |
| Višina | 250 mm |
| Teža izdelka | 1.44 kg |
| colour | white (RAL 9001) |
| Širina | 600 mm |
| surface finish | matt smooth |
| enclosure/cubicle description | floor-standing enclosure - width 600 mm wall-mounted enclosure - width 600 mm cubicle - width 650 mm depth 400 mm Pack enclosure - width 555 mm |
| number of vertical modules [50 mm] | 6 module(s): kilowatt-hour meters in 600 mm Widefloor-standing enclosure 6 module(s): kilowatt-hour meters in 600 mm Widewall-mounted enclosure 6 module(s): kilowatt-hour meters in 650 mm Widecubicle 6 module(s): kilowatt-hour meters in 555 mm WidePack enclosure |
| protective treatment | electrophoresis treatment and hot-polymerised polyester epoxy powder |
| enclosure/cubicle width | 600 mm Prisma G floor-standing enclosure power meters kilowatt-hour meters vertical 2P 3 6 50 mm 600 mm Prisma G wall-mounted enclosure power meters kilowatt-hour meters vertical 2P 3 6 50 mm 650 mm 400 mm Prisma P cubicle power meters kilowatt-hour meters vertical 2P 3 6 50 mm 555 mm Pack 160 Pack enclosure power meters kilowatt-hour meters vertical 2P 3 6 125 mm |
| Okolje | |
| Certifikati izdelkov | ASEFA |
| Standardi | IEC 61439-2 |
