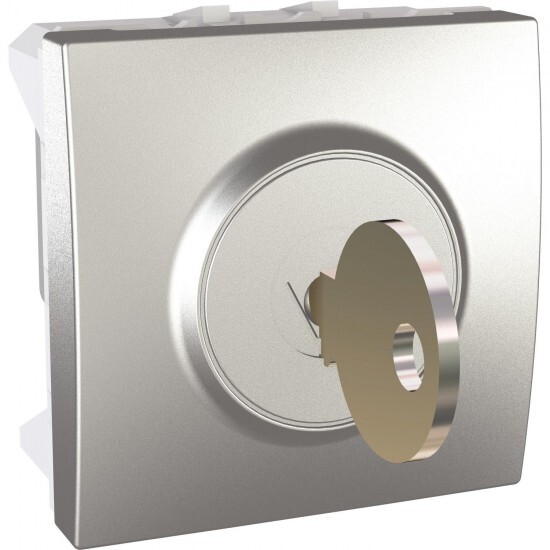

MGU3.701.30 Schneider
MGU3.701.30 Schneider
Opis
Unica Top/Class - key switch - 2 pos. - 10 A 250 VAC - 2 m - alu.
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Unica |
| Izdelek ali sestavni del | key switch |
| Skupina izdelkov | Unica |
| Aplikacija naprave | control |
| Predstavitev naprave | mechanism |
| switch function | 2 positions |
| colour tint | aluminium |
| Main colour tint | aluminium |
| aesthetic name | Unica Top - Unica Class |
| Komplementarno | |
| Višina | 45 mm |
| Teža izdelka | 0.047 kg |
| Povezave - terminali | screw terminals |
| electrical durability | 40000 cycles, cos phi = 0.6 |
| Širina | 45 mm |
| Globina | 30 mm |
| standards | EN 60669-1 LV directive EMC directive |
| Material | ASA + PC: mechanism cover |
| cable cross section | 0-2.5 mm² rigid cable 0-2.5 mm² flexible cable |
| insulation resistance | > 5 MOhm at 500 V |
| ambient air temperature for operation | 25-35 °C |
| Način pritrjevanja | clip-in |
| ambient air temperature for storage | 0-50 °C |
| dielectric strength | 2000 V |
| number of modules | 2 modules |
| rated current | 10 A at 250 V AC 50/60 Hz |
| opening distance | > 3 mm |
| minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| actuator | key |
| Okolje | |
| IP stopnja zaščite | IP20 |
| IK stopnja zaščite | IK01 |
| environmental characteristic | petrol acetone ammonia bleach oil UV resistant window-cleaning fluid alcohol liquid soap |
| environmental health and issues | halogen free |
