MGU3.105.25N Schneider
MGU3.105.25N Schneider
Opis

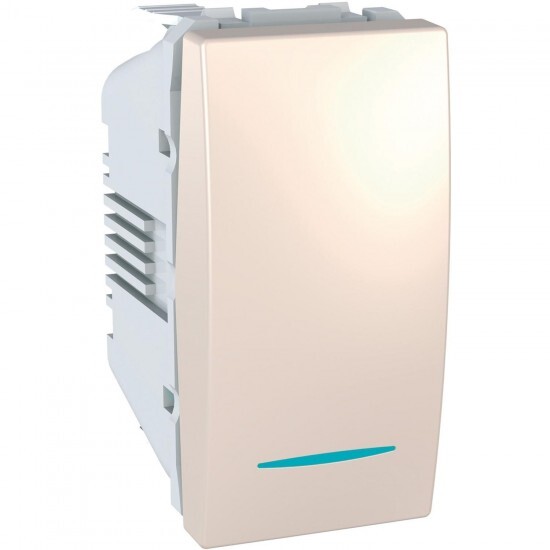

Unica - rocker switch - intermediate - 10 AX 250 VAC - 1 m - ivory
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Unica |
| Izdelek ali sestavni del | switch |
| Skupina izdelkov | Unica |
| Aplikacija naprave | control |
| Provided equipment | internal power connection |
| Predstavitev naprave | mechanism |
| switch function | intermediate |
| colour tint | ivory |
| Main colour tint | ivory |
| aesthetic name | Unica (standard aesthetic) |
| Komplementarno | |
| Višina | 45 mm |
| Teža izdelka | 0.0251 kg |
| Povezave - terminali | screwless terminals |
| electrical durability | 10000 cycles |
| Širina | 22.5 mm |
| Globina | 34 mm |
| standards | EN 60669-1 LV directive EMC directive |
| Material | ASA + PC: mechanism cover |
| cable cross section | 0-2.5 mm² rigid cable 0-2.5 mm² flexible cable |
| insulation resistance | > 5 MOhm at 500 V |
| ambient air temperature for operation | 25-35 °C |
| Način pritrjevanja | clip-in |
| embedding depth | 22 mm |
| ambient air temperature for storage | 0-50 °C |
| dielectric strength | 2000 V |
| number of modules | 1 module |
| rated current | 10 AX at 250 V AC 50/60 Hz |
| opening distance | > 3 mm |
| minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| pilot light | LED, colour: blue, current consumption: 0.15 mA, temperature rise: 15 °C |
| actuator | rocker |
| Okolje | |
| IP stopnja zaščite | IP20 |
| IK stopnja zaščite | IK01 |
| environmental characteristic | acetone alcohol liquid soap petrol window-cleaning fluid bleach UV resistant oil ammonia |
| environmental health and issues | halogen free |
